Lasko Fan Fires

© 2006-2012 Dr. Ray Franco, PhD., PE    r.a.franco@ieee.org


In February 2006, the U.S. Consumer Protection Safety Commission (CPSC) in cooperation with Lasko Products Inc. issued a recall of 5.6 Million Lasko Box and Pivoting Floor Fans: Recall Notice of Lasko Fans. The fans were sold under the names: Lasko, General Electric, Galaxy (Wal-Mart) and Air King. They were manufactured between January 1999 and July 2001 and sold through February 2004.

SMC Fan Tag

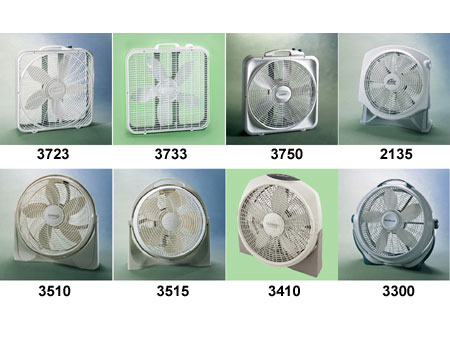

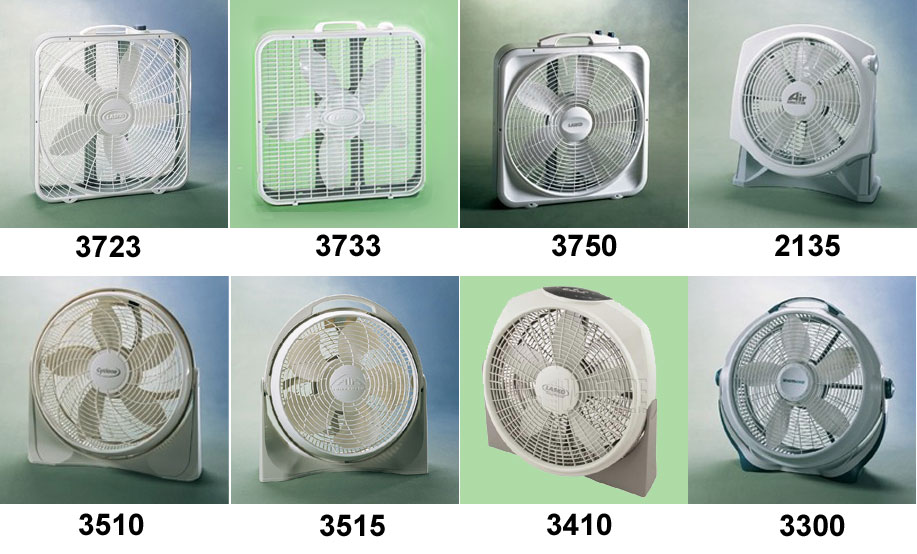

Model Numbers of Lasko Recalled Fans.

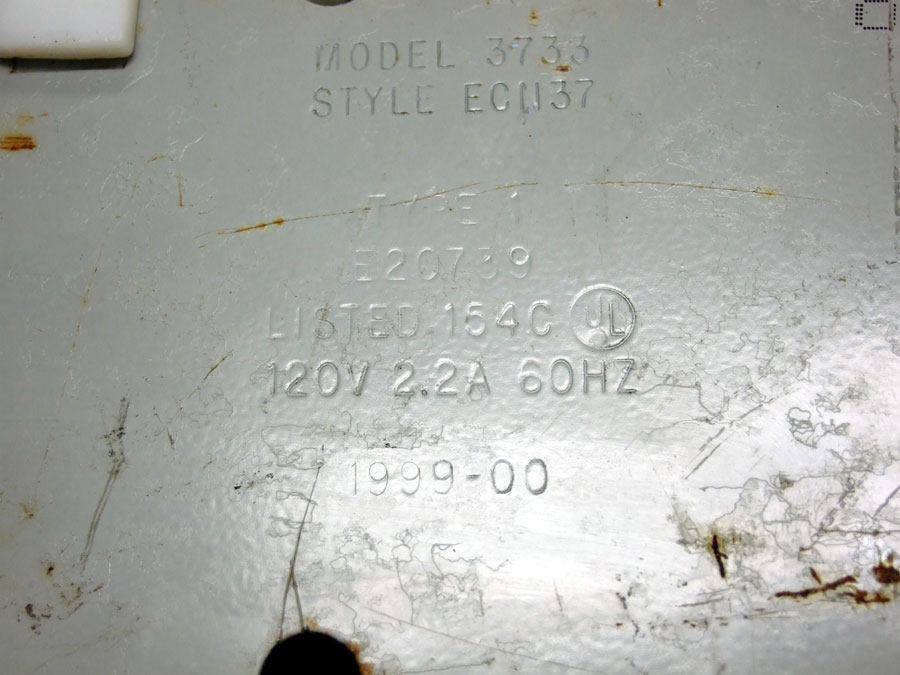

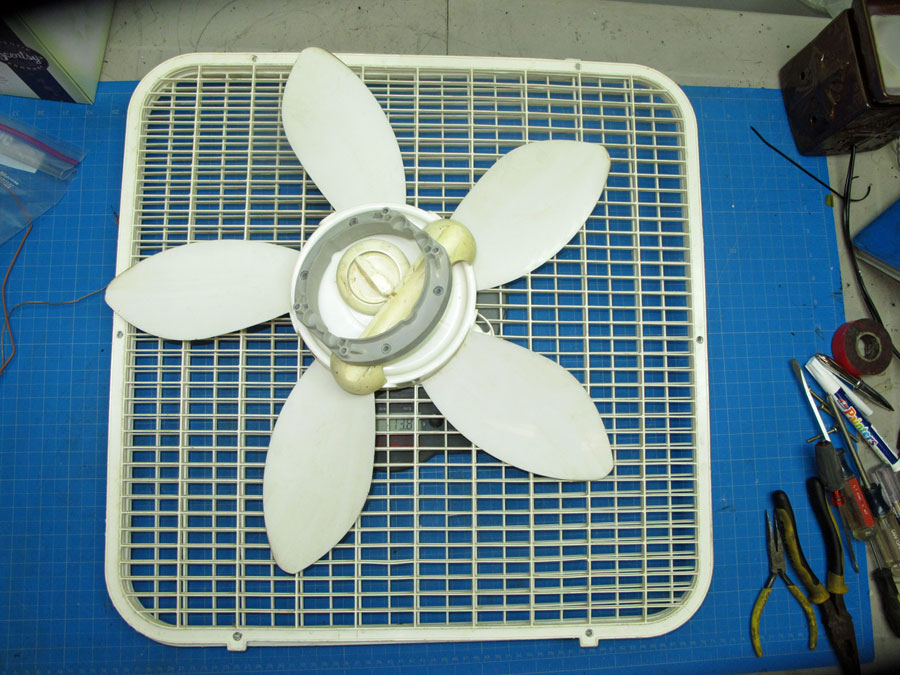

Exemplar Lasko Model 3733 - 20-Inch Box - Manufactured January 1999 - Meets the Criteria of CPSC Recall.

For Maximum Resolution, Click on the Body of the Picture.

SMC Fan Tag

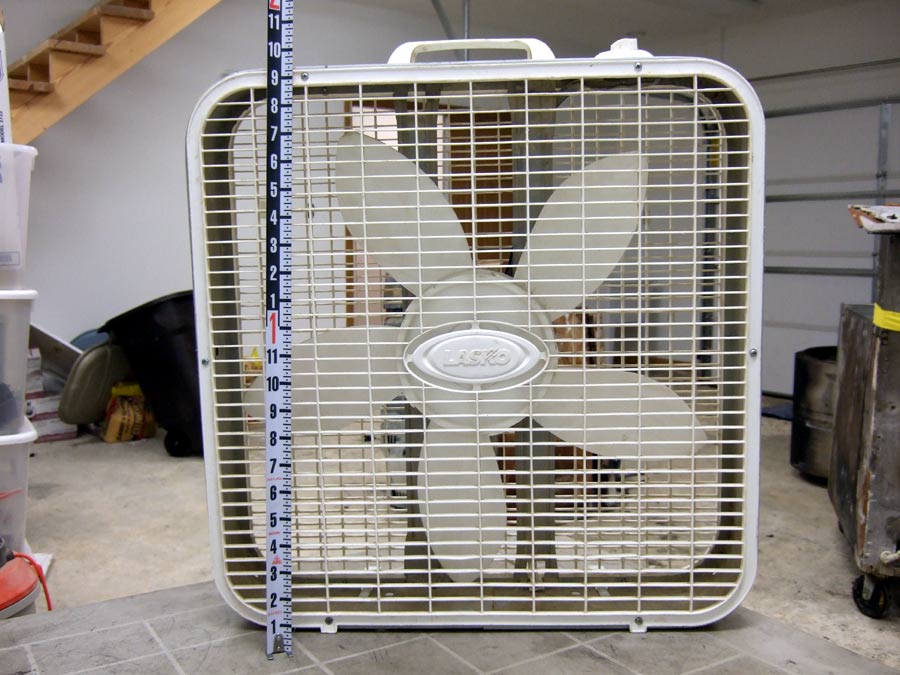

Front of Lasko Model 3733 Exemplar Fan.

SMC Fan Tag

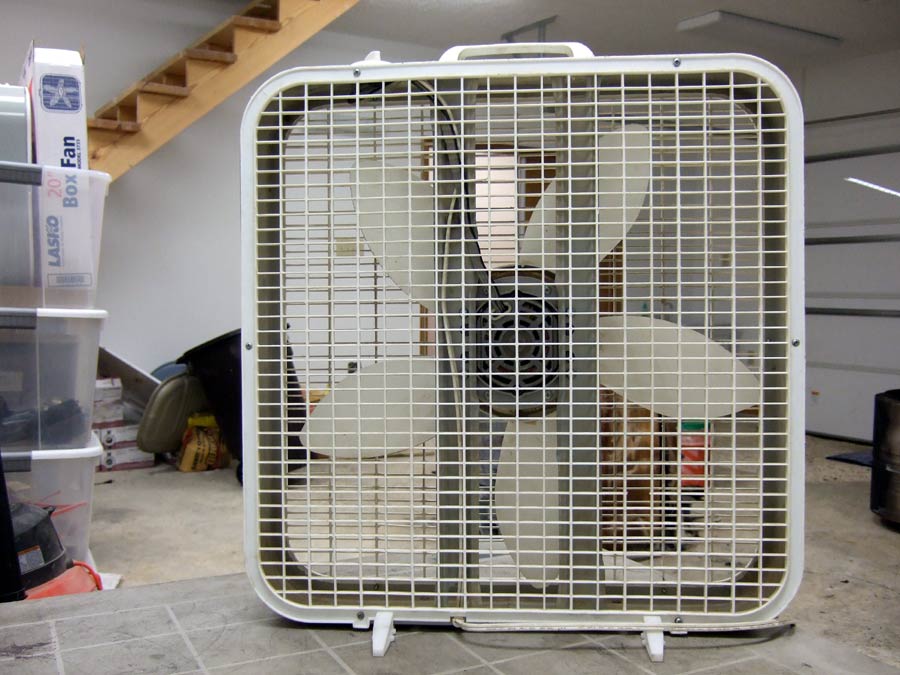

Back of Lasko Model 3733 Exemplar Fan.

SMC Fan Tag

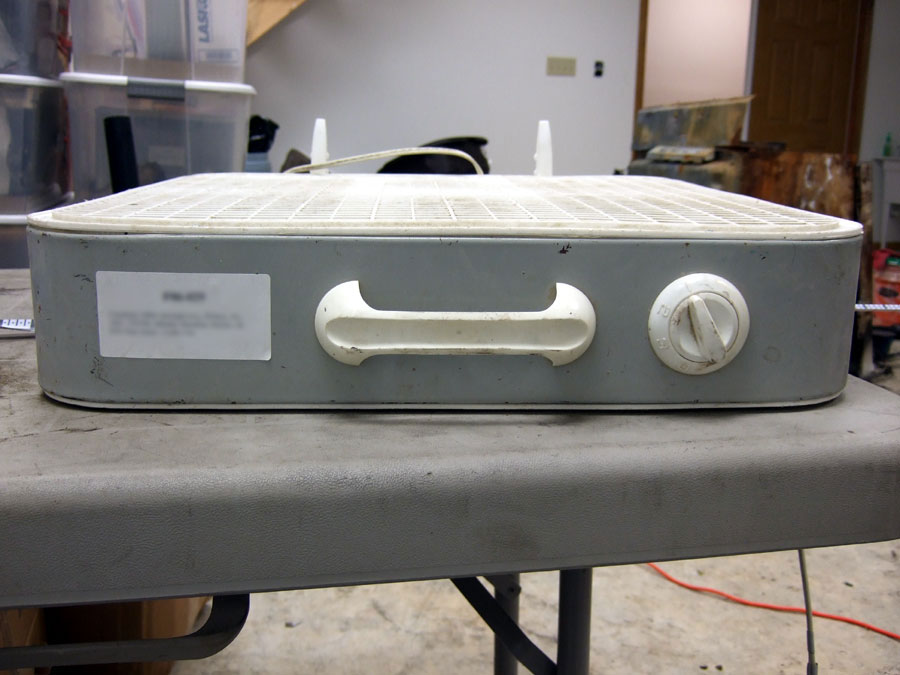

Top of Lasko Model 3733 Exemplar Fan.

SMC Fan Tag

Bottom of Lasko Model 3733 Exemplar Fan.

SMC Fan Tag

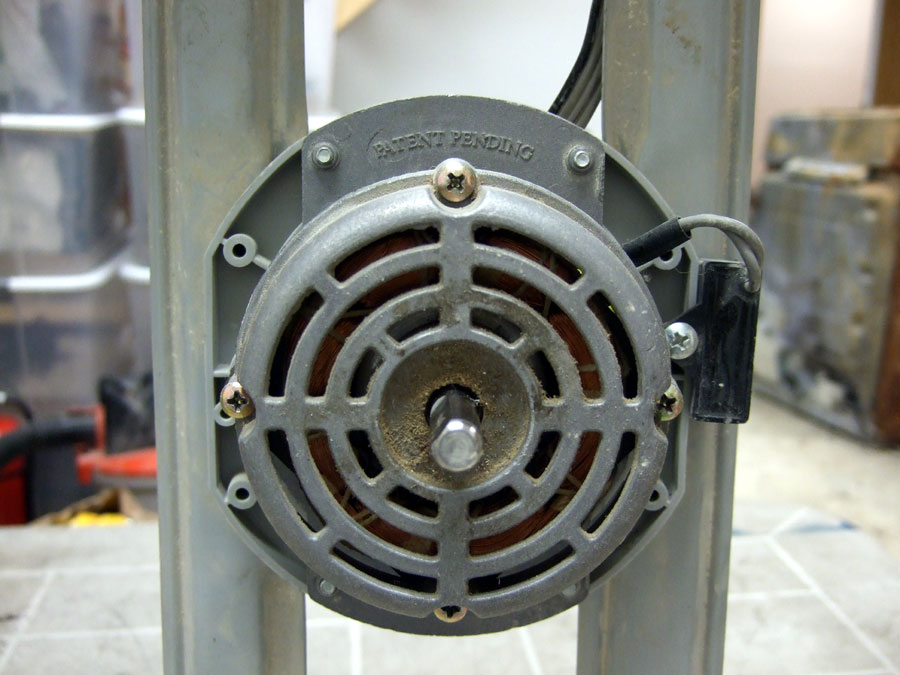

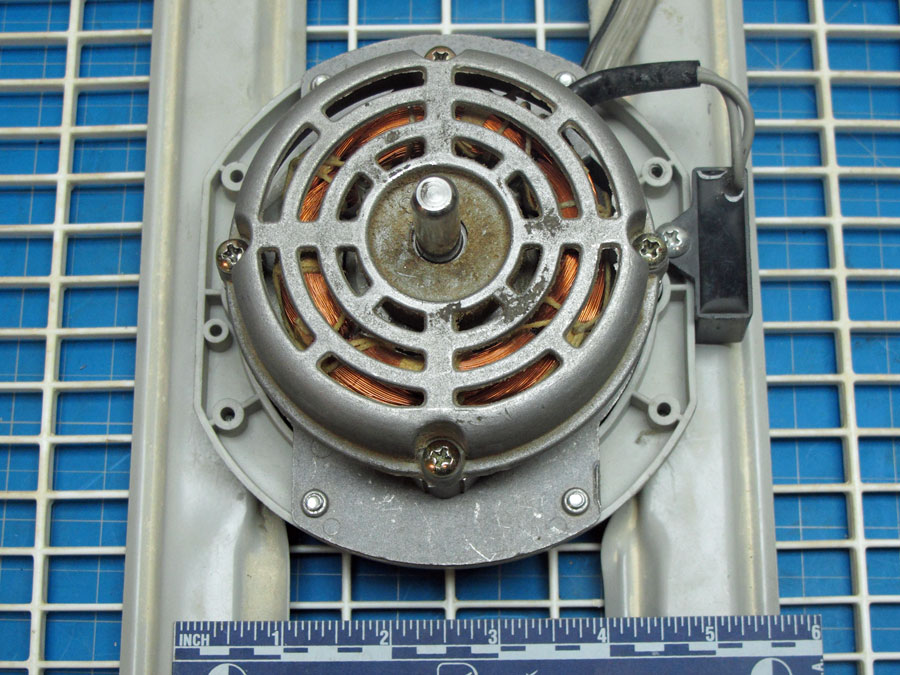

Front of Motor Frame.

SMC Fan Tag

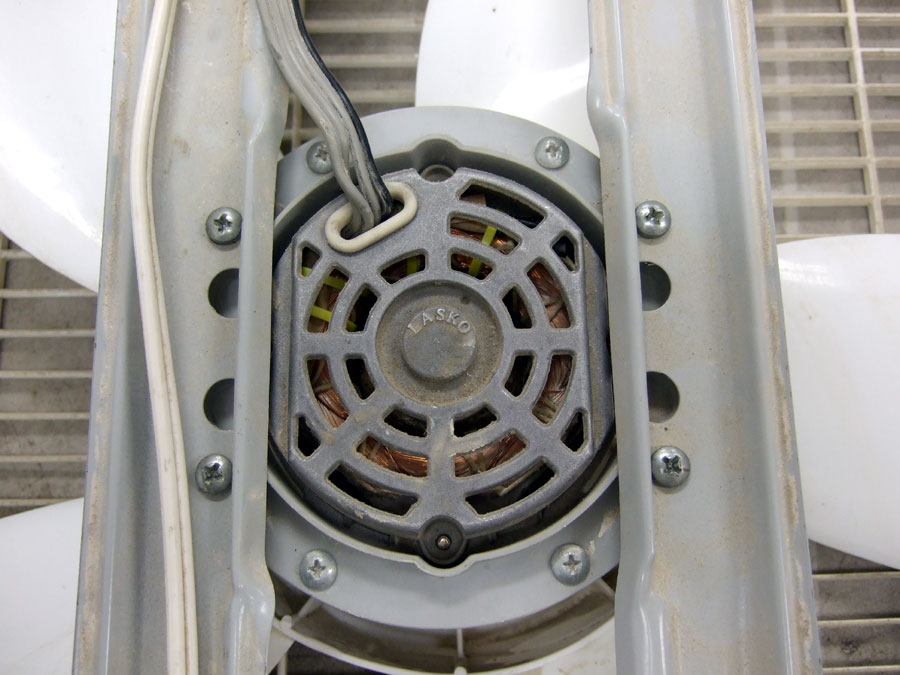

Back of Motor Frame - "Lasko" in Raised Letters.

SMC Fan Tag

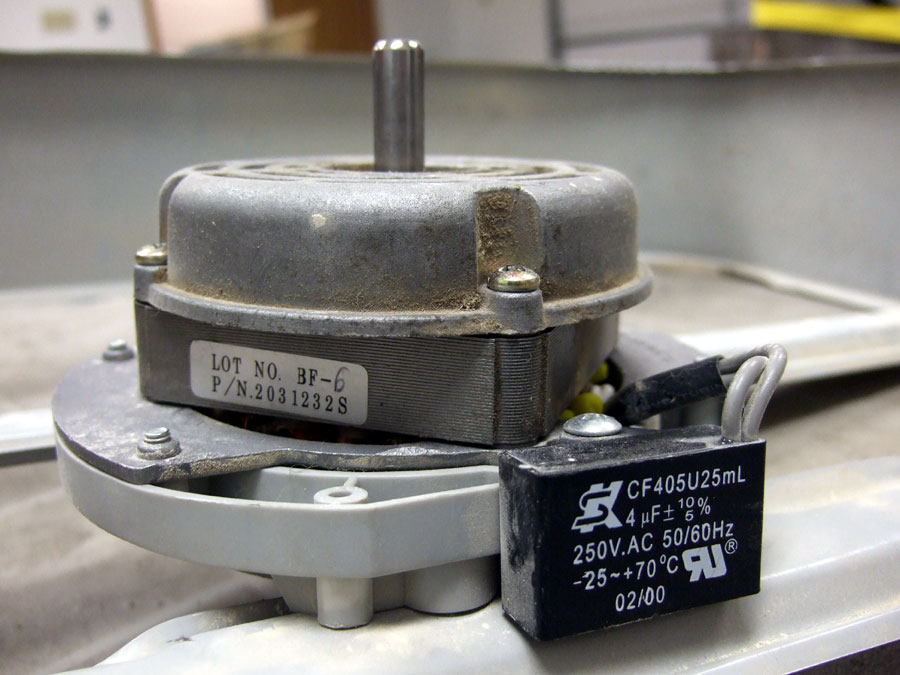

Side of Motor Frame and Start/Run Capacitor
Lot No. BF-6, P/N. 2031232S.

SMC Fan Tag

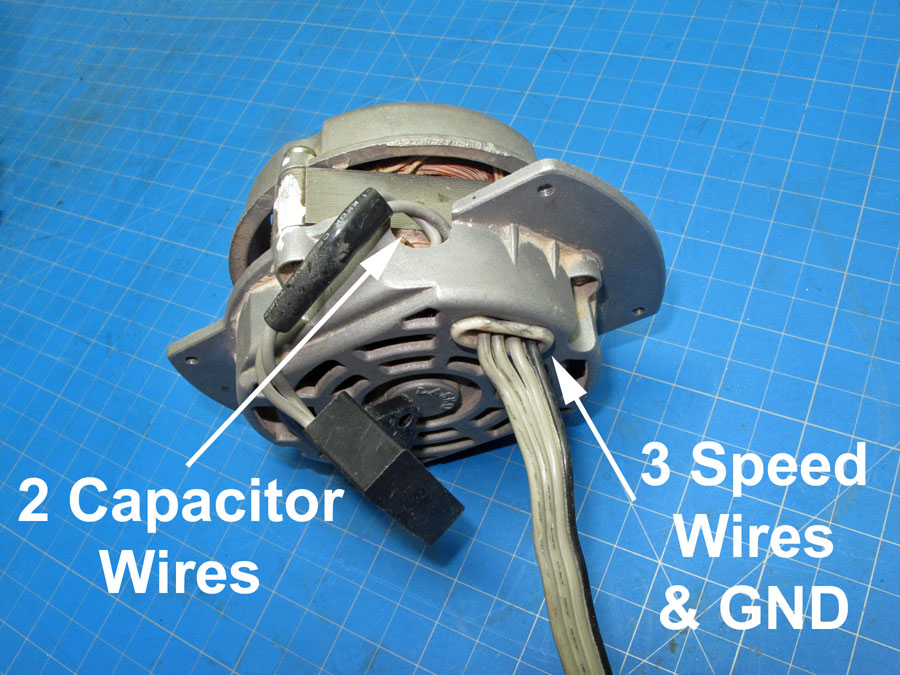

Where the Capacitor and Speed Wires enter the Motor Frame.

SMC Fan Tag

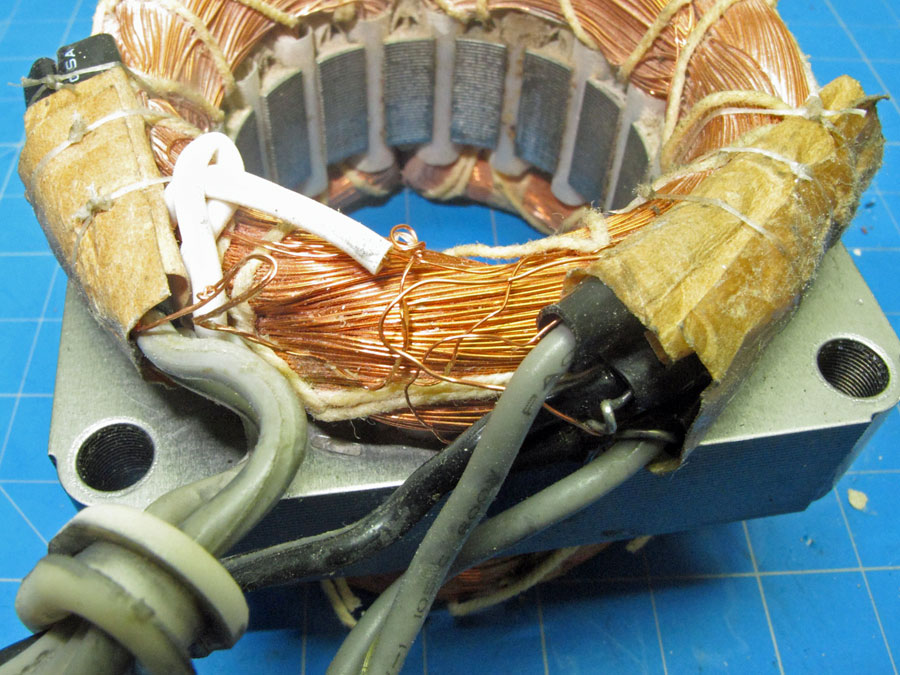

Congested Area at the Back of the Motor Winding were the Speed Wires, Start/Run Capacitor and Thermal Fuse are connected to the Motor Winding.

SMC Fan Tag

Excess Motor Wires - A Potential for Wire Chafing.

SMC Fan Tag

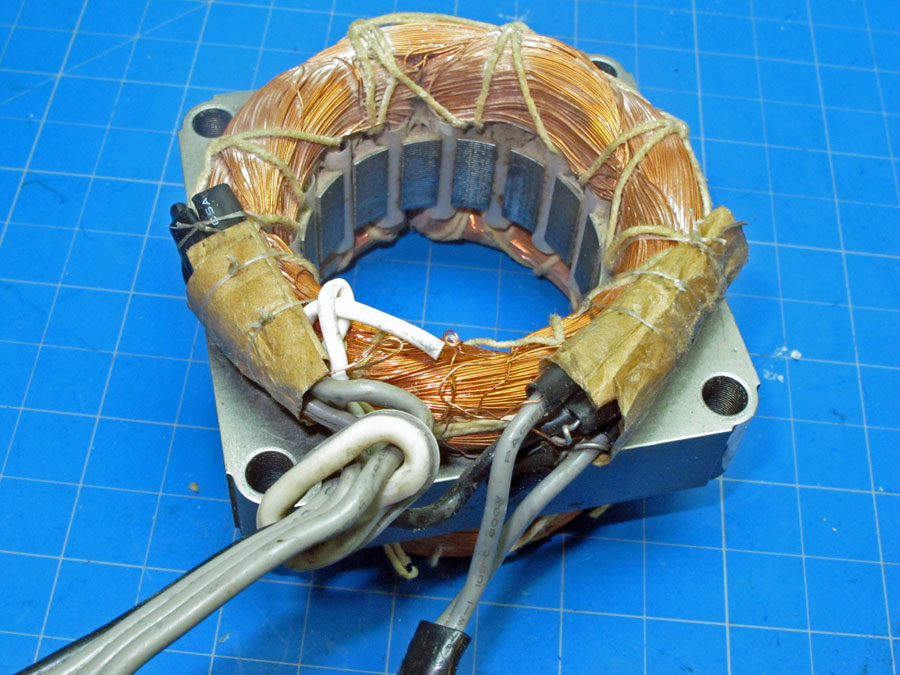

Back View of Motor Winding.

SMC Fan Tag

Font View of Motor Winding.

SMC Fan Tag

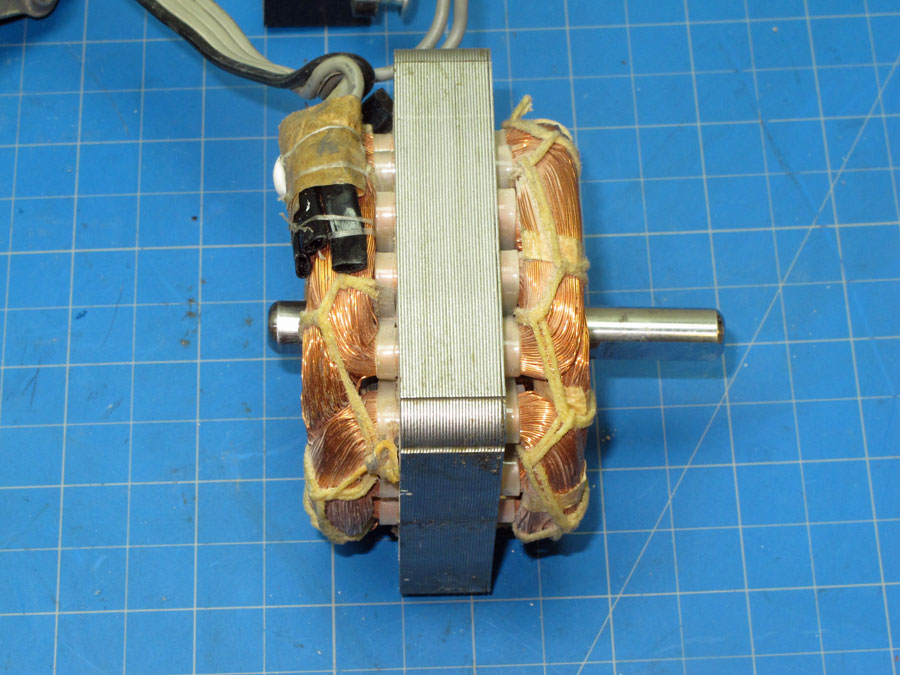

Side View of Motor Winding.

SMC Fan Tag

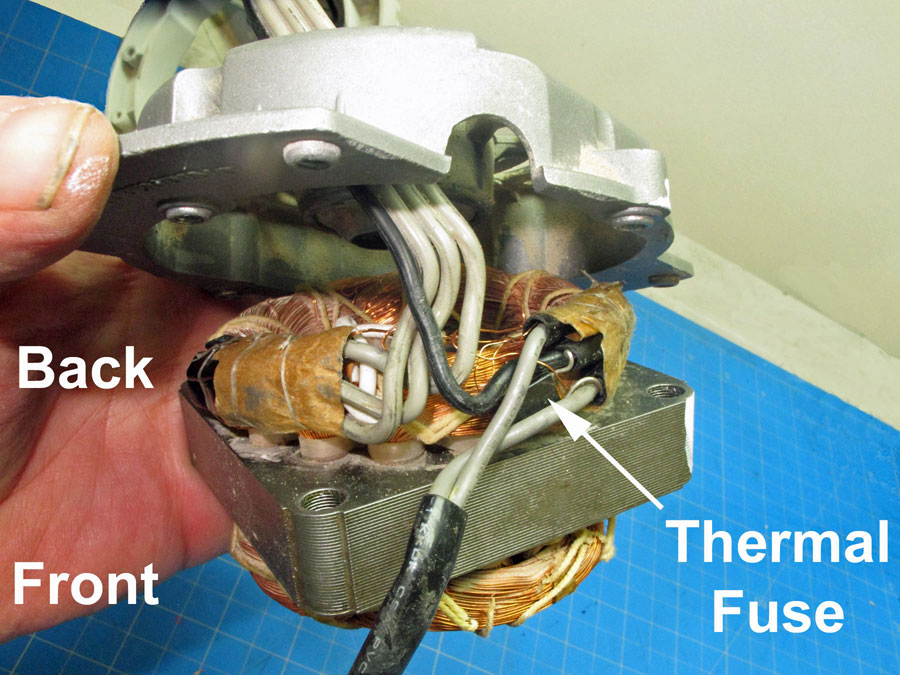

Lasko Motor Thermal Fuse 115°C (239°F).

SMC Fan Tag

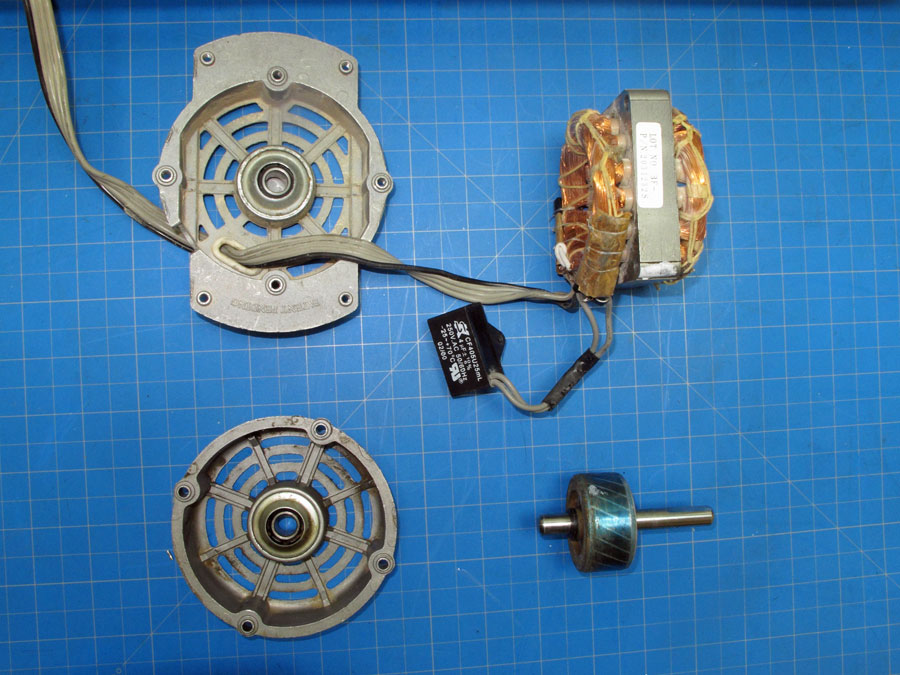

Composite View of 1999-00 Lasko Fan Motor.

SMC Fan Tag

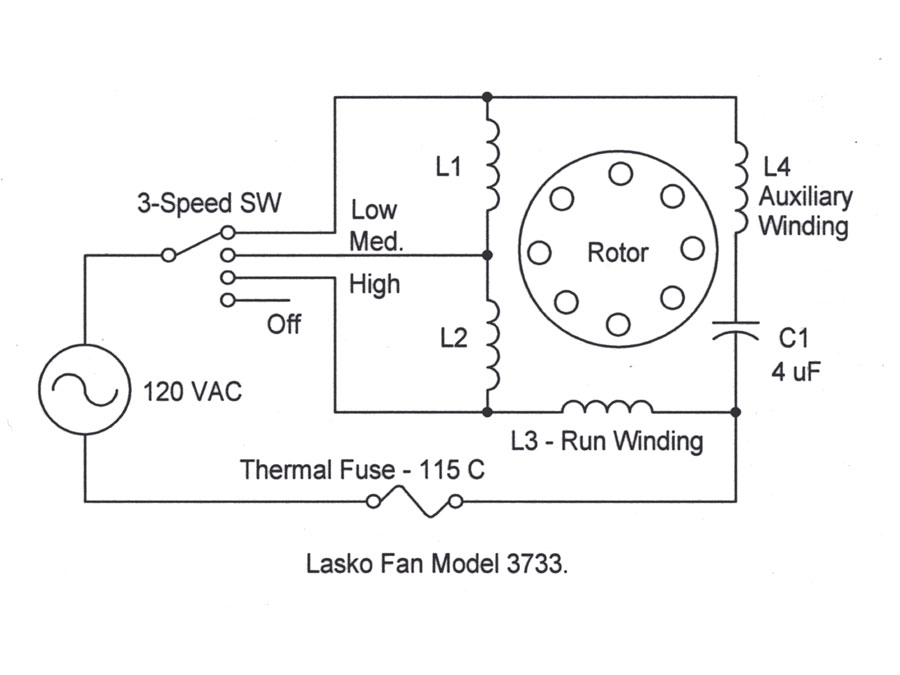

Schematic of Lasko Fan 3733 Motor.
Resistances: Run = 71 Ω; Aux = 162 Ω; L1 = 43 Ω; L2 = 56 Ω.

SMC Fan Tag

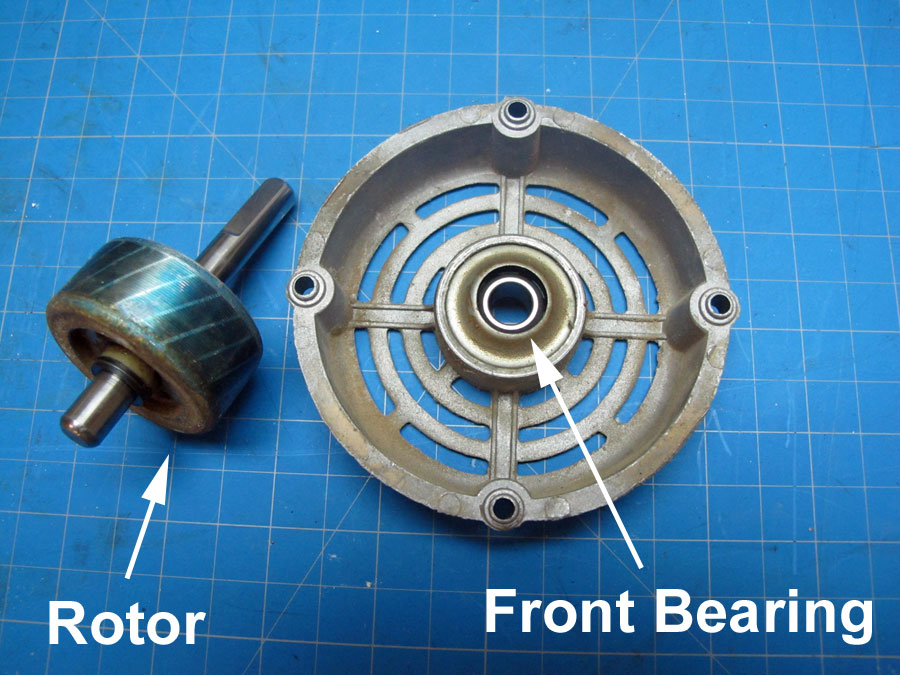

Front Bearing of Lasko Motor.

SMC Fan Tag

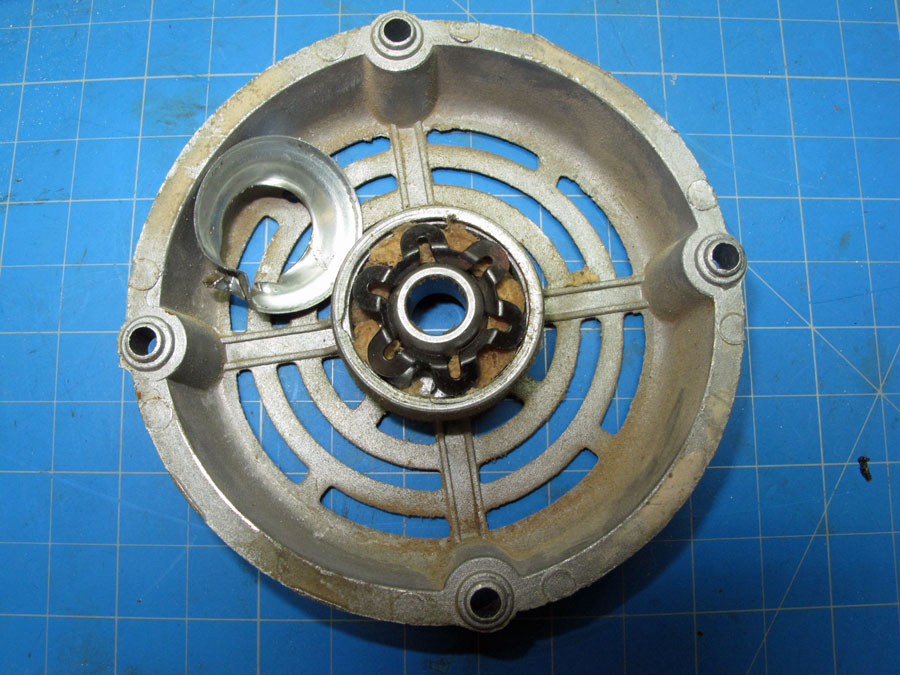

Front Bearing with Retaining Cover removed.

SMC Fan Tag

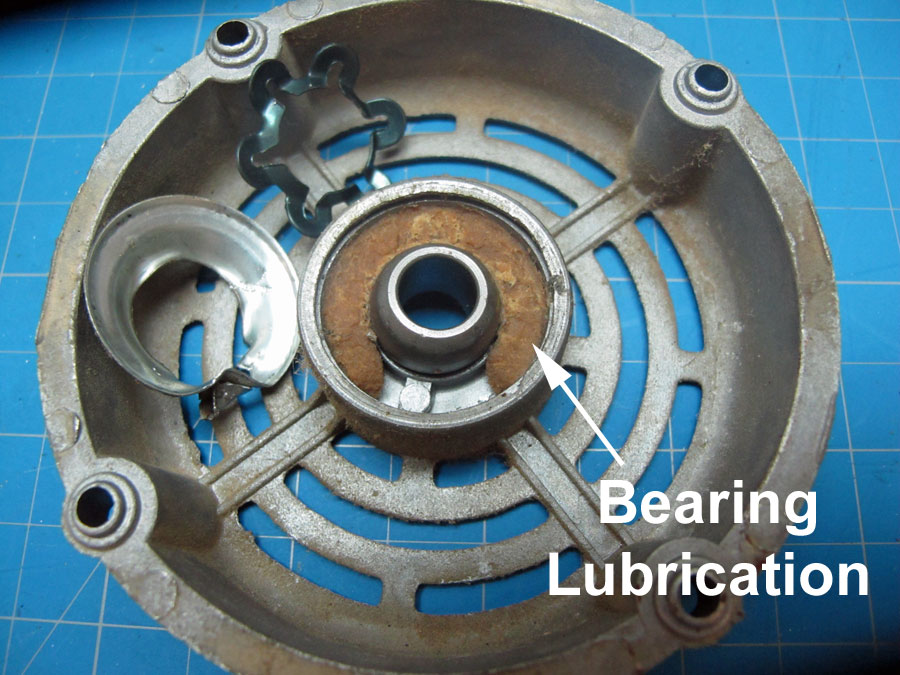

The Bearing is lubricated by Cotton Felt soaked in Oil.

SMC Fan Tag

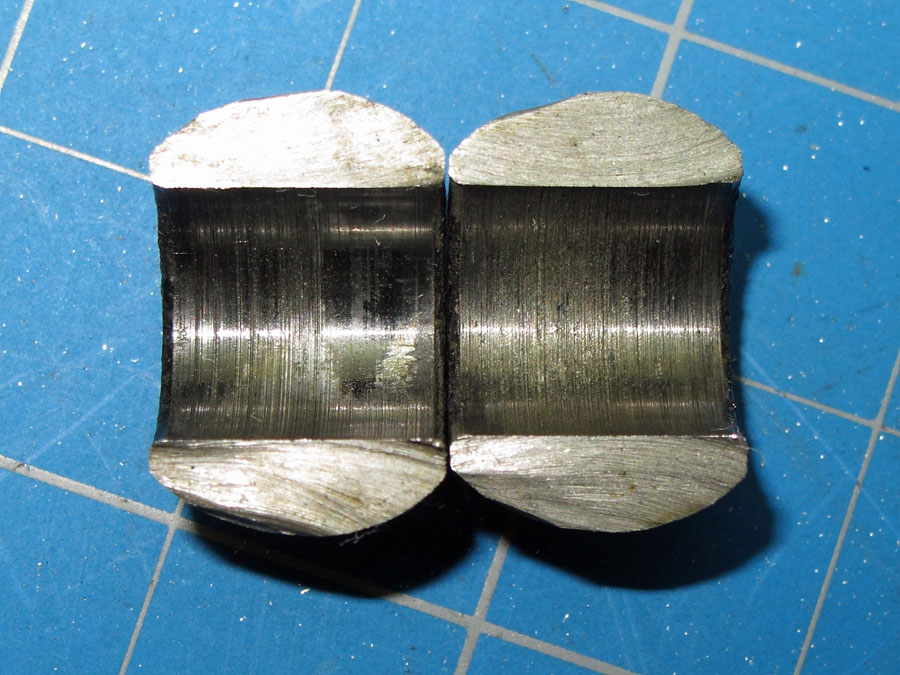

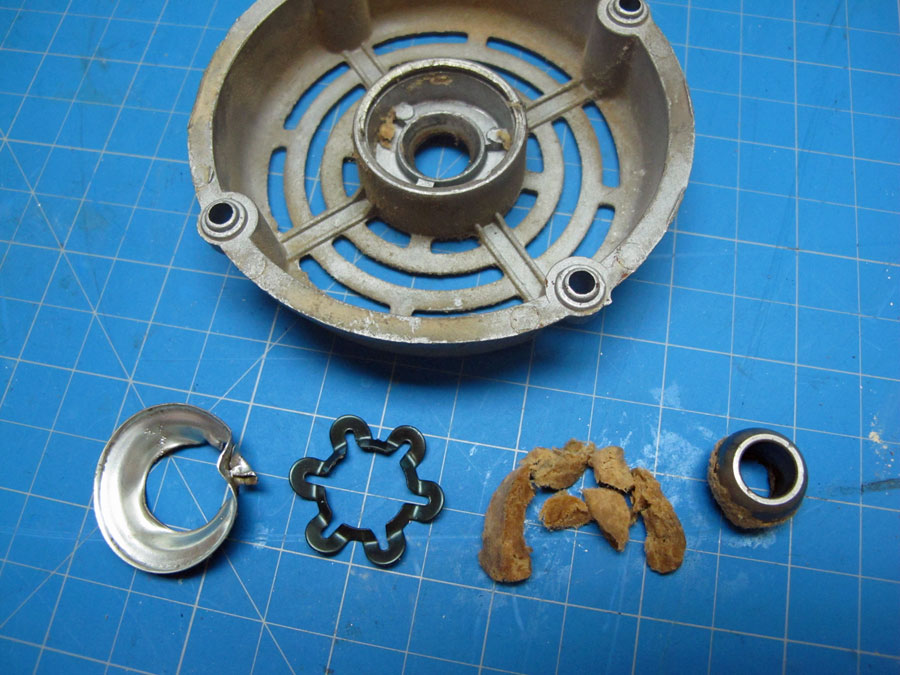

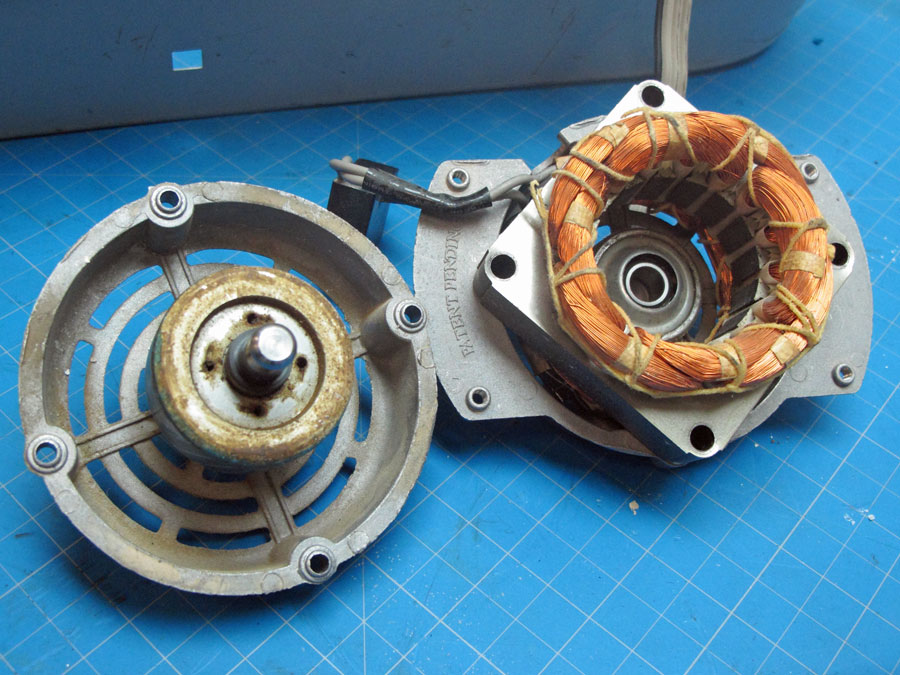

Composite View depicting all of the Pieces of the Bearing.

SMC Fan Tag

The Fan contains approximately 1.8 lbs. of Polypropylene Plastic.

SMC Fan Tag

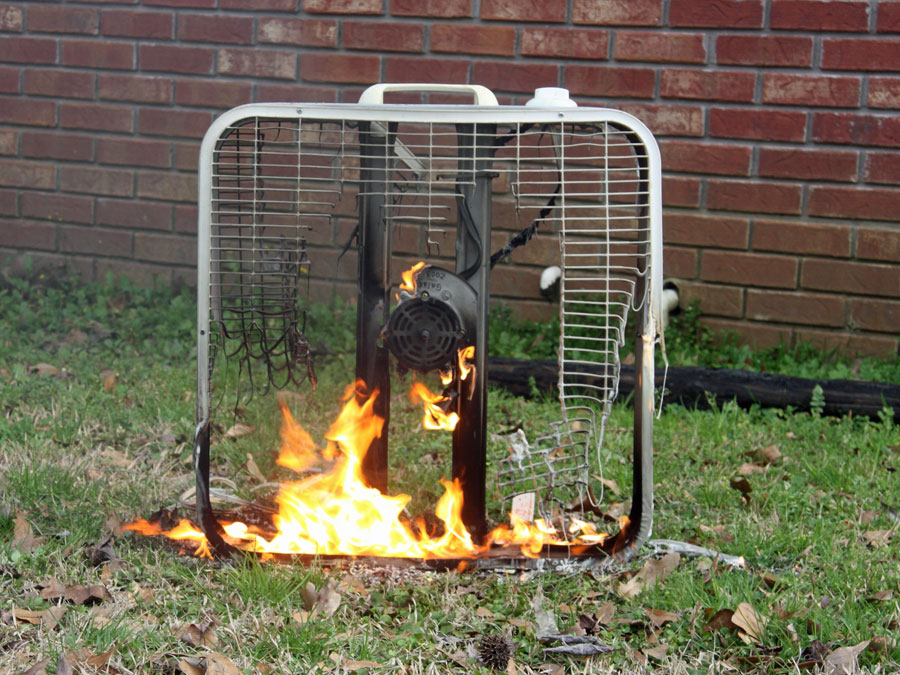

This Fire was started with a Cigarette Lighter.
The Plastic burned for 30 Minutes.

SMC Fan Tag

To Prevent Fan Fires, Lasko Now Places a Fuse in the Power Cord Plug.
A Pigtail Power Cord with a Fuse is Added to the Recalled Fans.

SMC Fan Tag

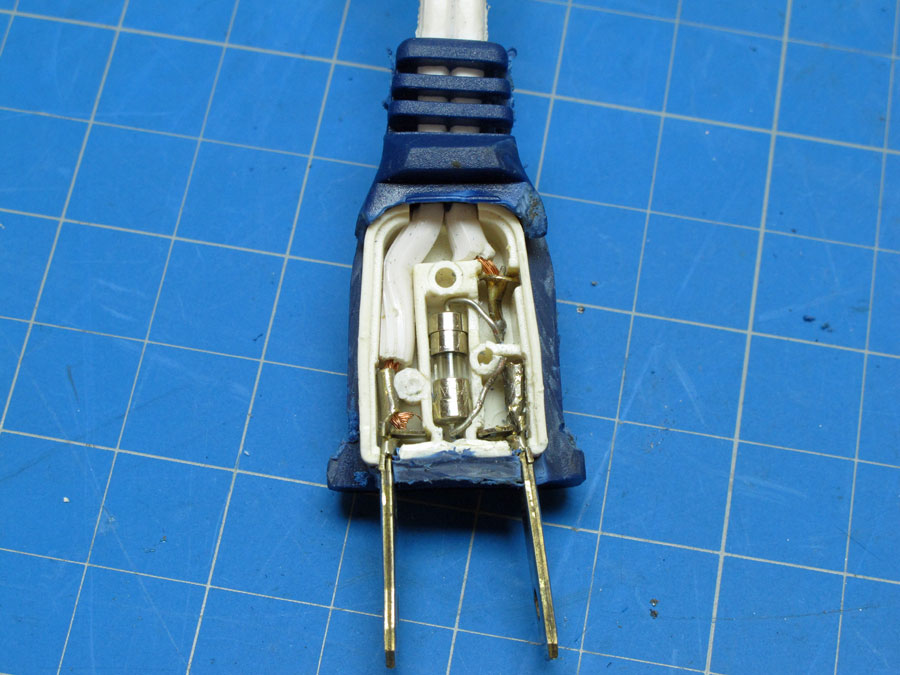

The Inside of Lasko's Patented Fuse Plug.

SMC Fan Tag

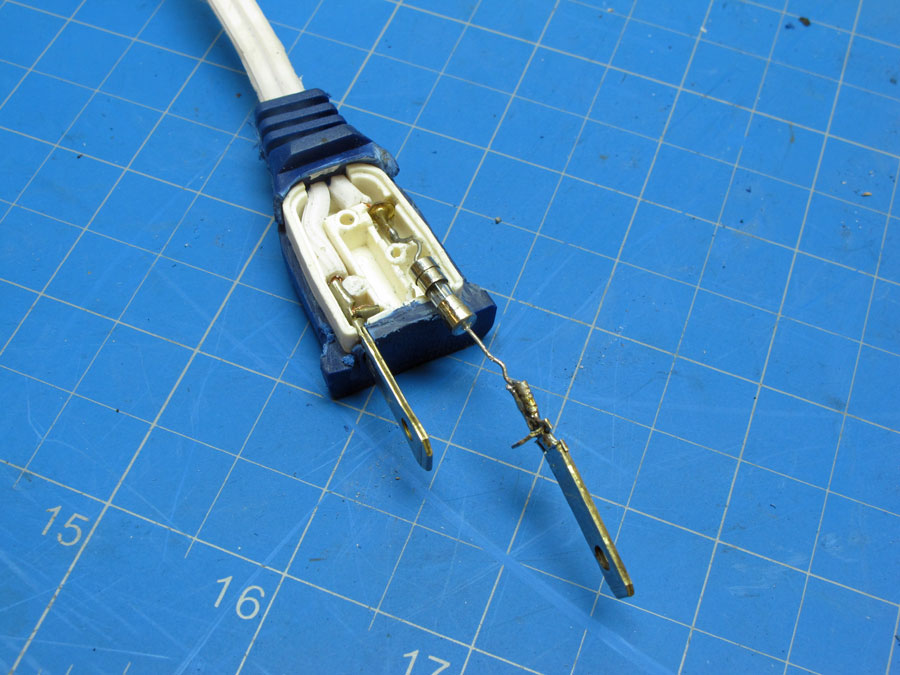

The Fuse is Inline with the 120 Volt Conductor.

SMC Fan Tag

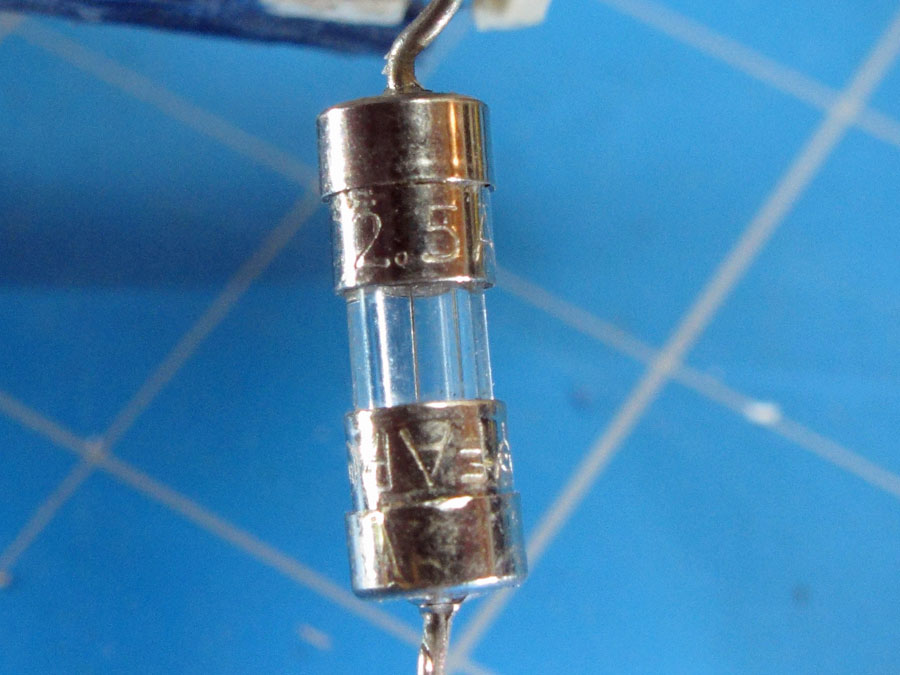

The Fuse Size is 2.5 Amps, 250 Volts.

SMC Fan Tag

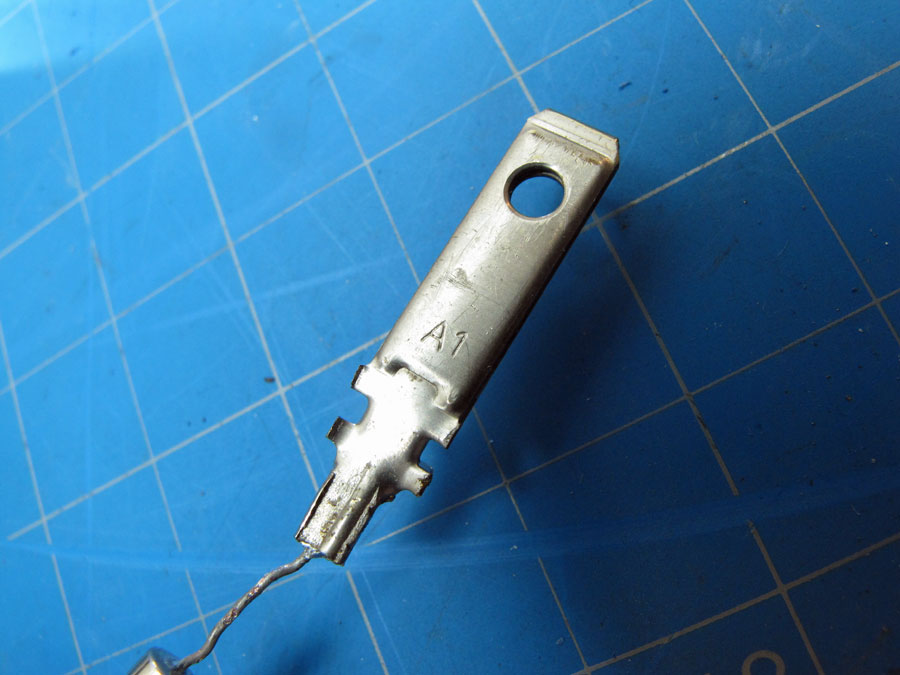

Plugs with a Fuse have "A1" stamped into one of the Blades.


Case History: F06-029 - Lasko Model 3733 - 20-Inch Box Fan Fire - Manufactured January 2000 - Meets Criteria of CPSC Recall.

For Maximum Resolution, Click on the Body of the Picture.

SMC Fan Tag

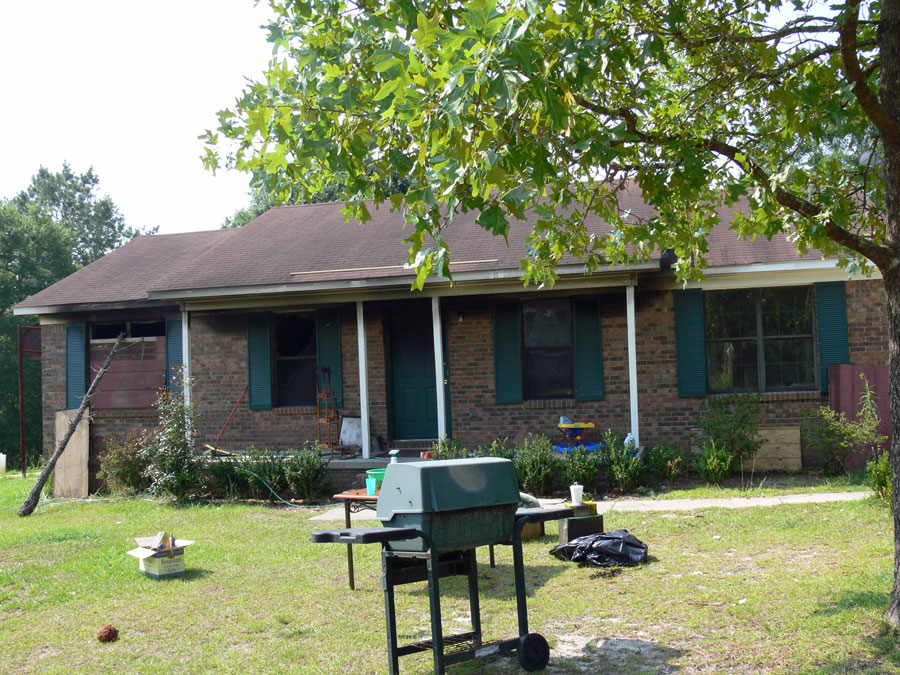

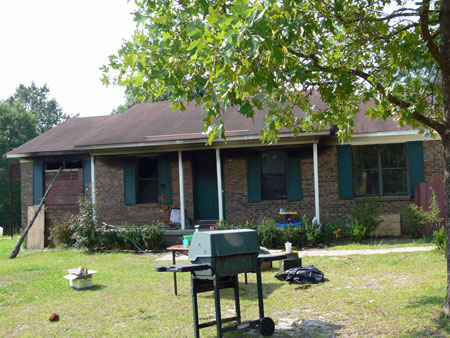

Lasko Fan Fire - Joyce Crawford, 15061 Starlight Ave., Wilmer, AL 5/21/06.

SMC Fan Tag

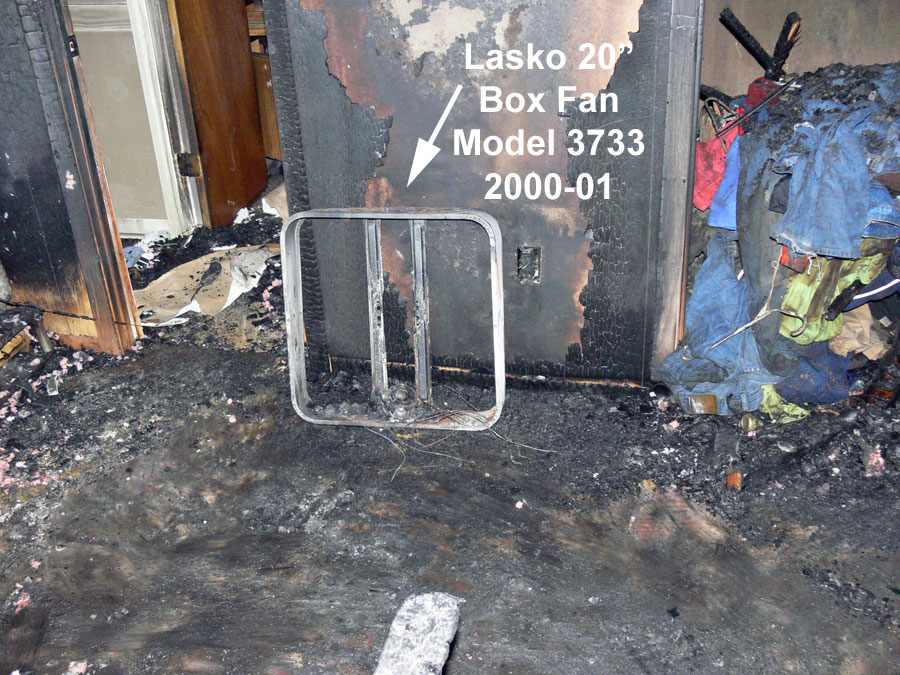

Area of Origin.

SMC Fan Tag

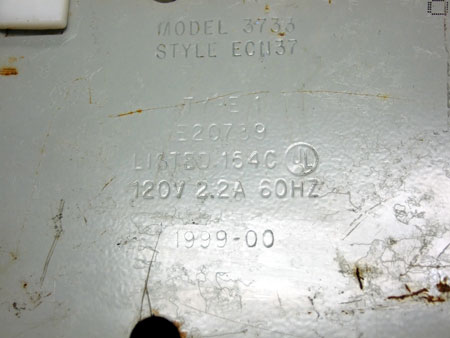

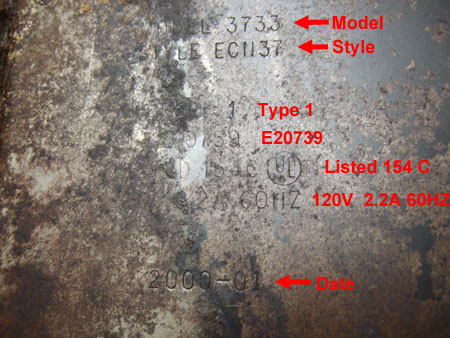

Fan Identification: Model 3733, ECN 37, 2000-01.

SMC Fan Tag

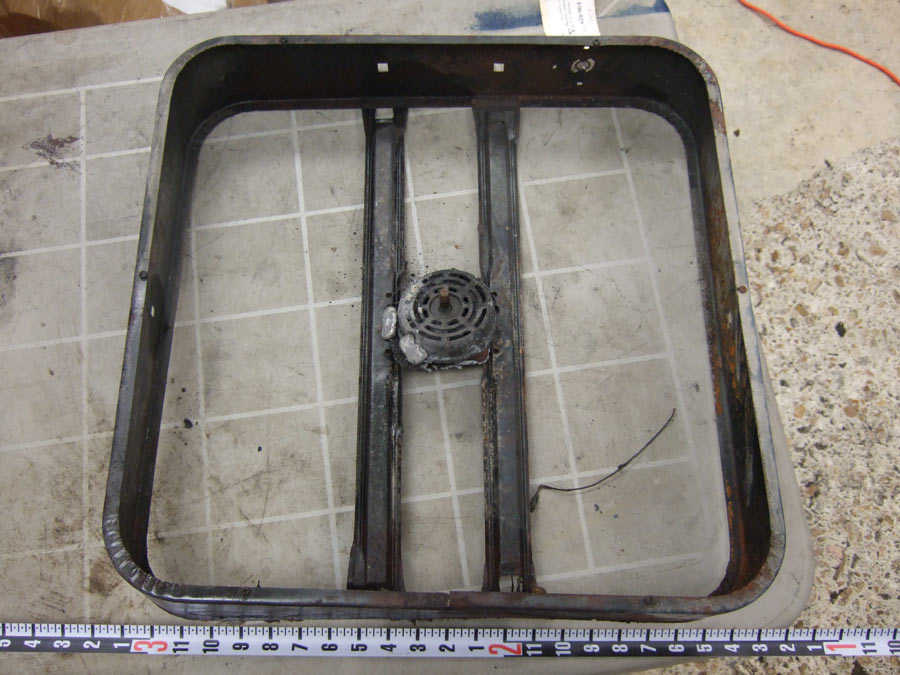

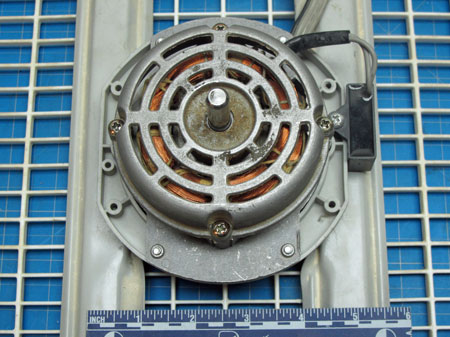

Fan Frame and Motor.

SMC Fan Tag

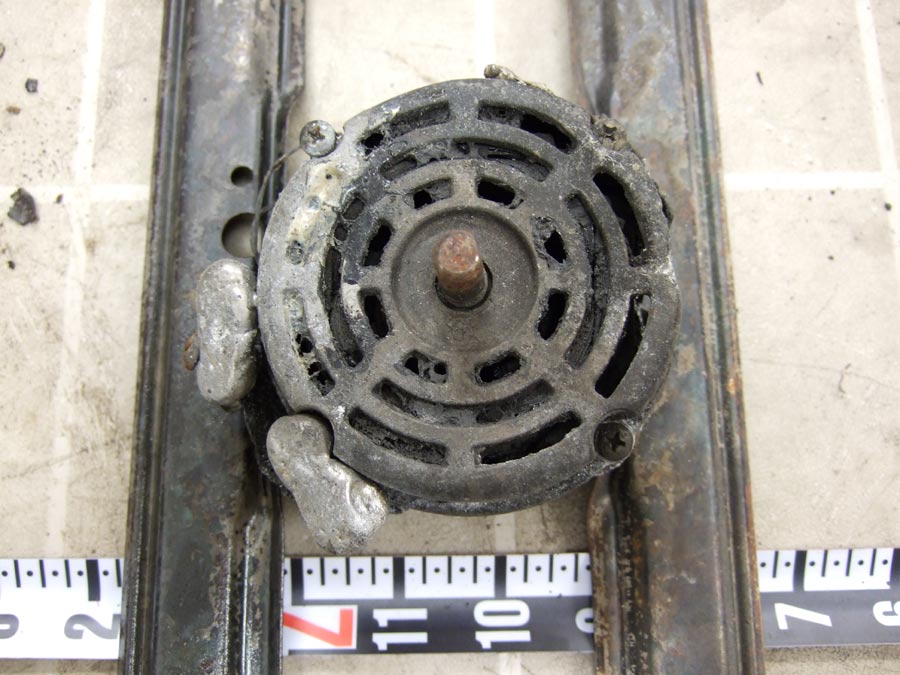

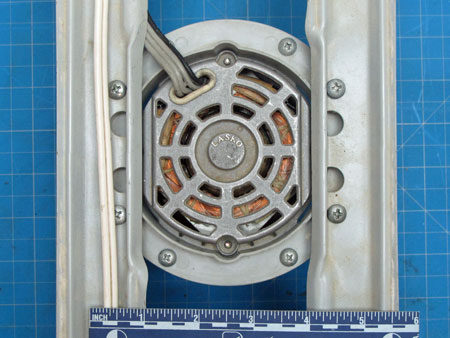

Front of Motor.

SMC Fan Tag

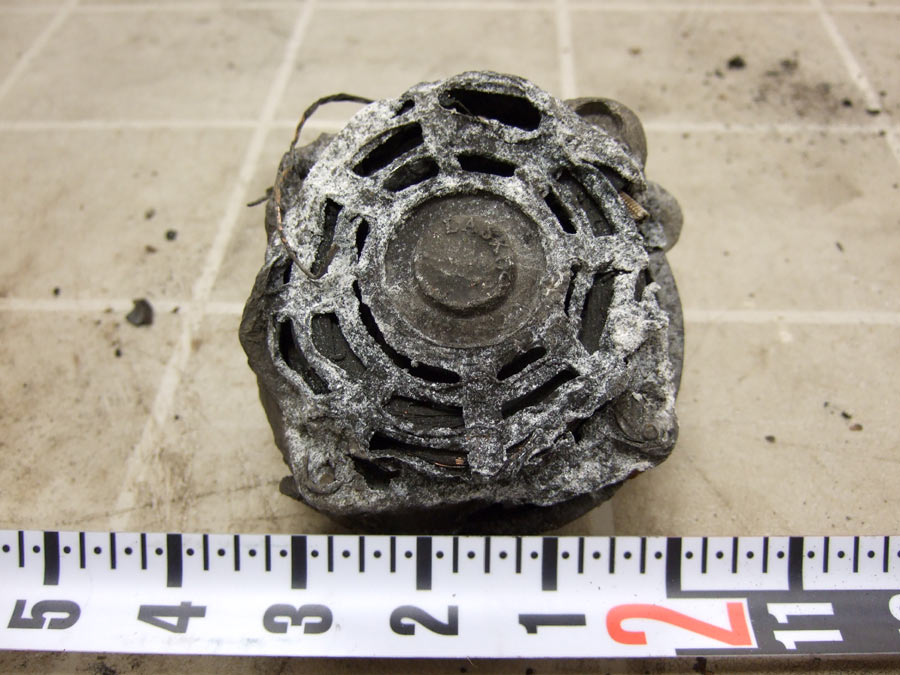

Back of Motor - "Lasko" in Raised Letters.

SMC Fan Tag

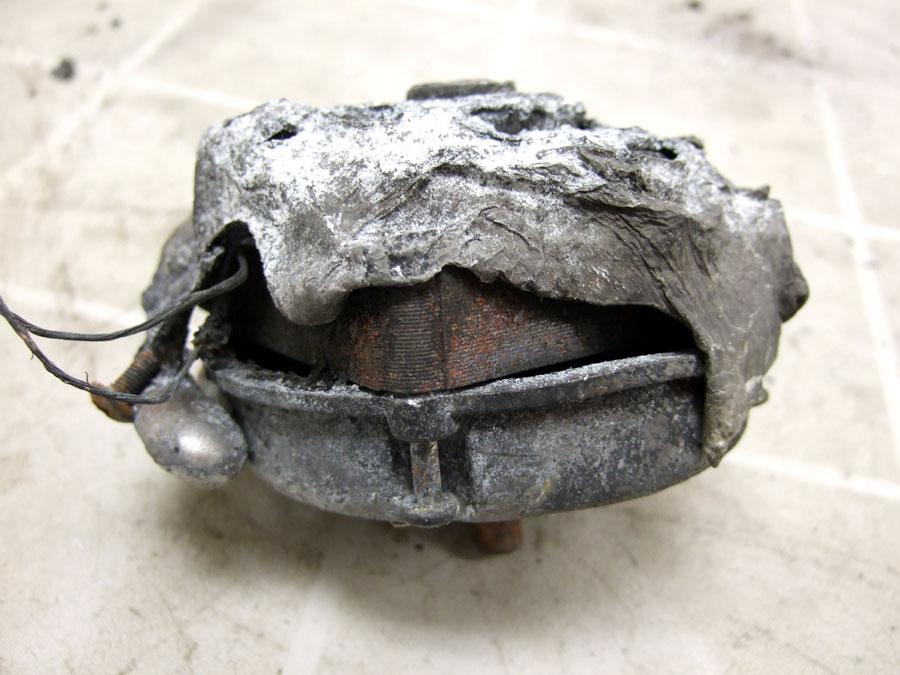

Side of Motor.

SMC Fan Tag

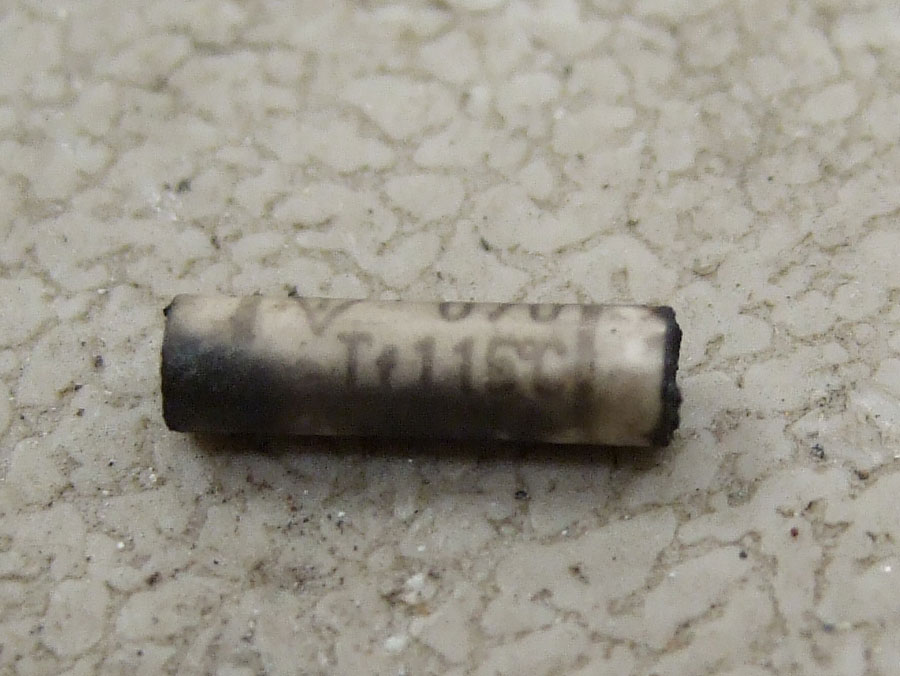

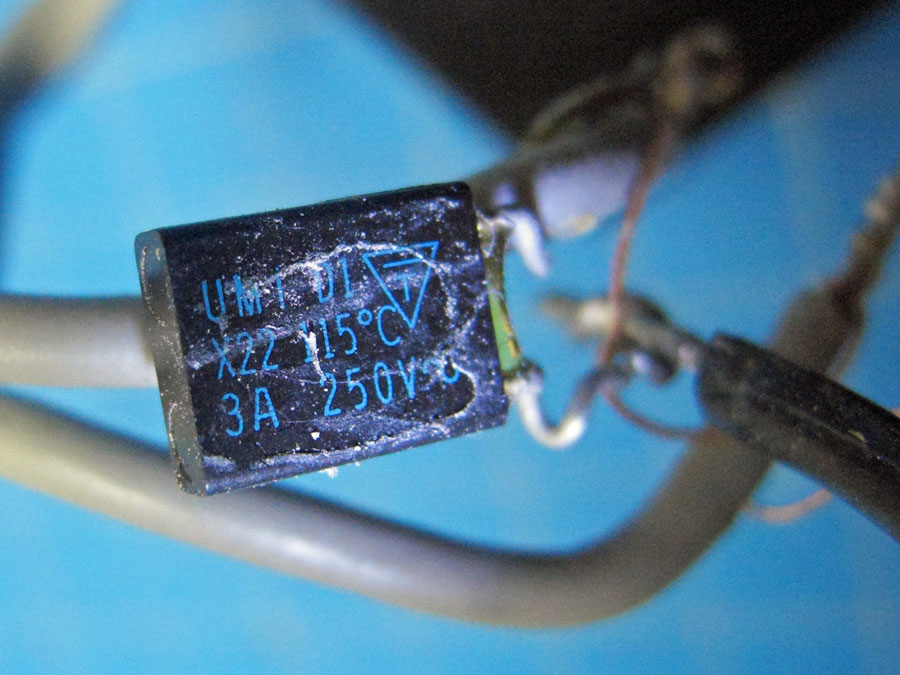

Thermal Fuse 115°C (239°F).

SMC Fan Tag

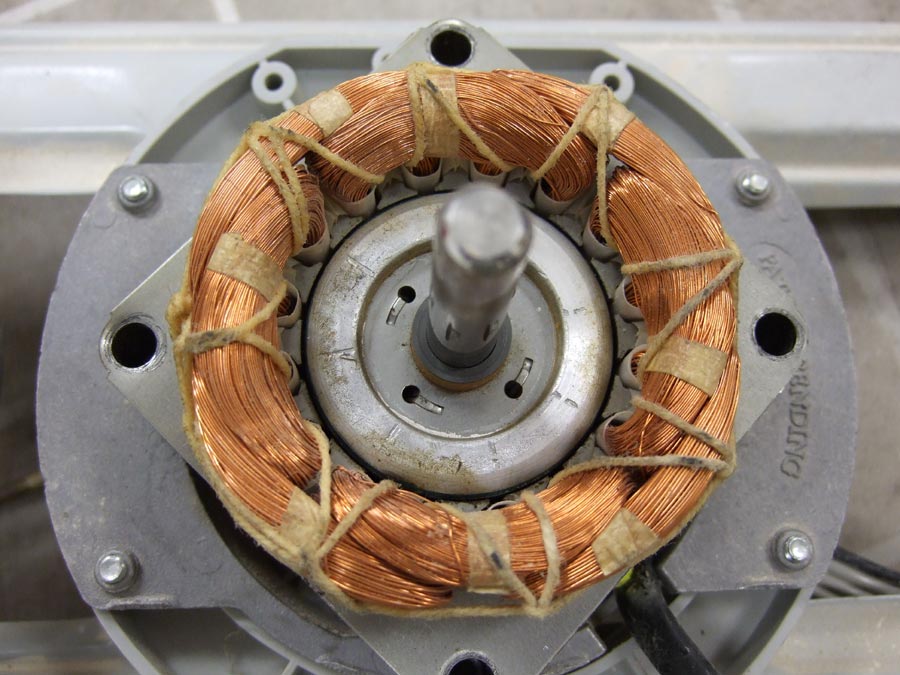

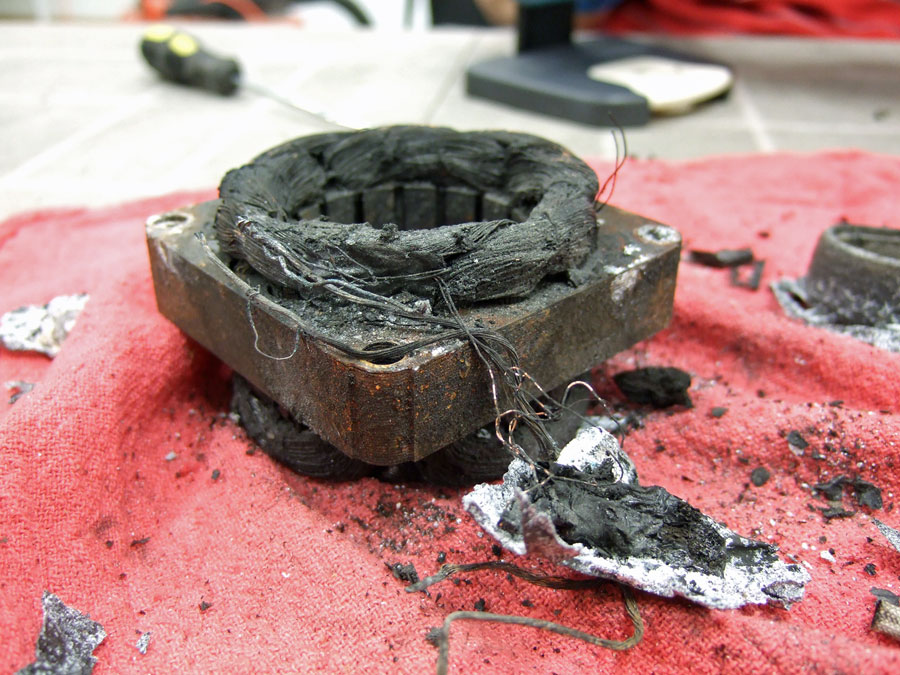

Motor Winding.

SMC Fan Tag

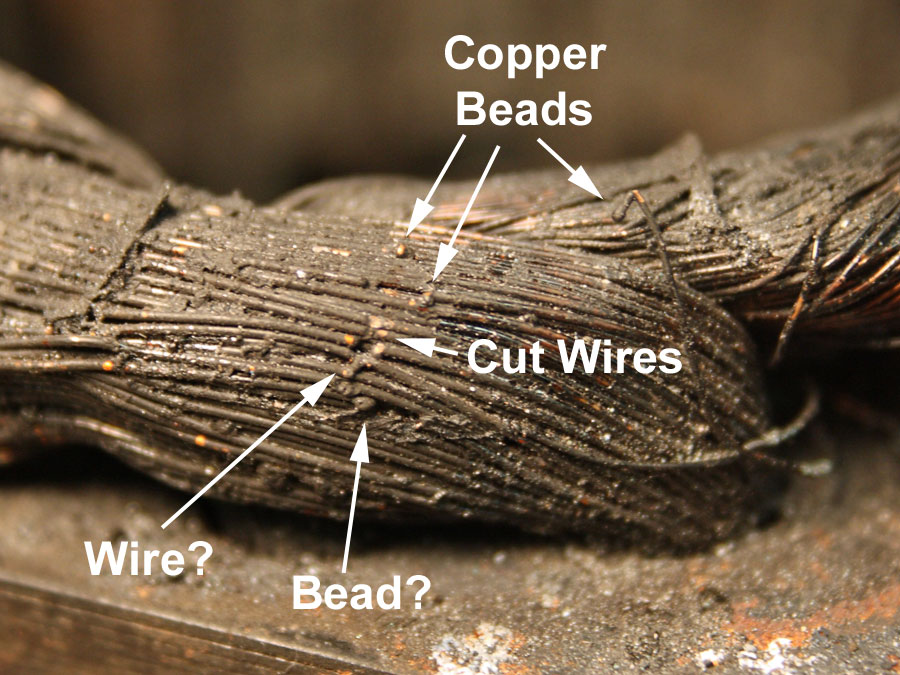

Copper Beads and Electrical Cut Wires.

SMC Fan Tag

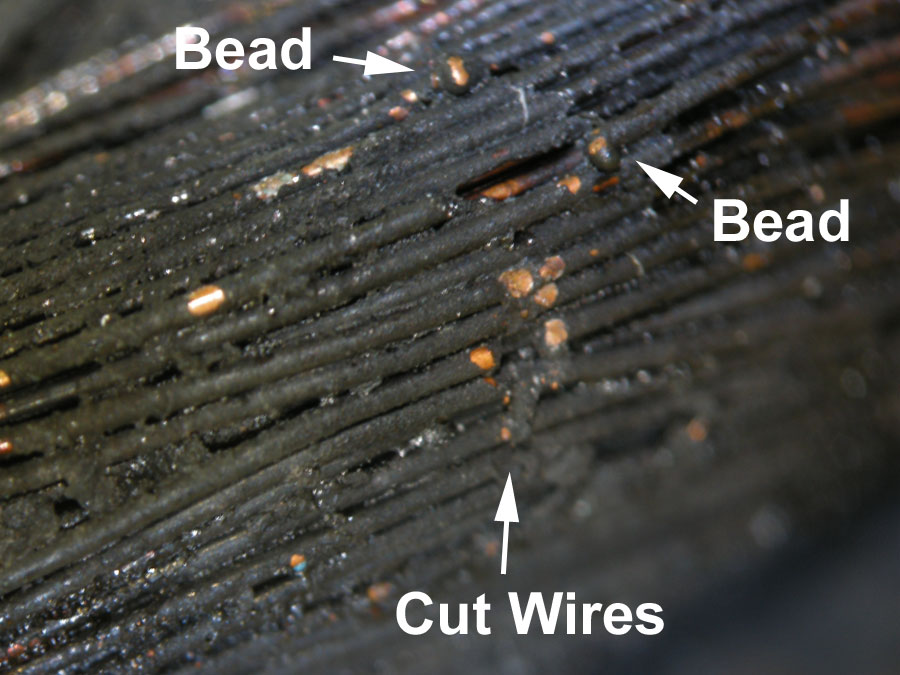

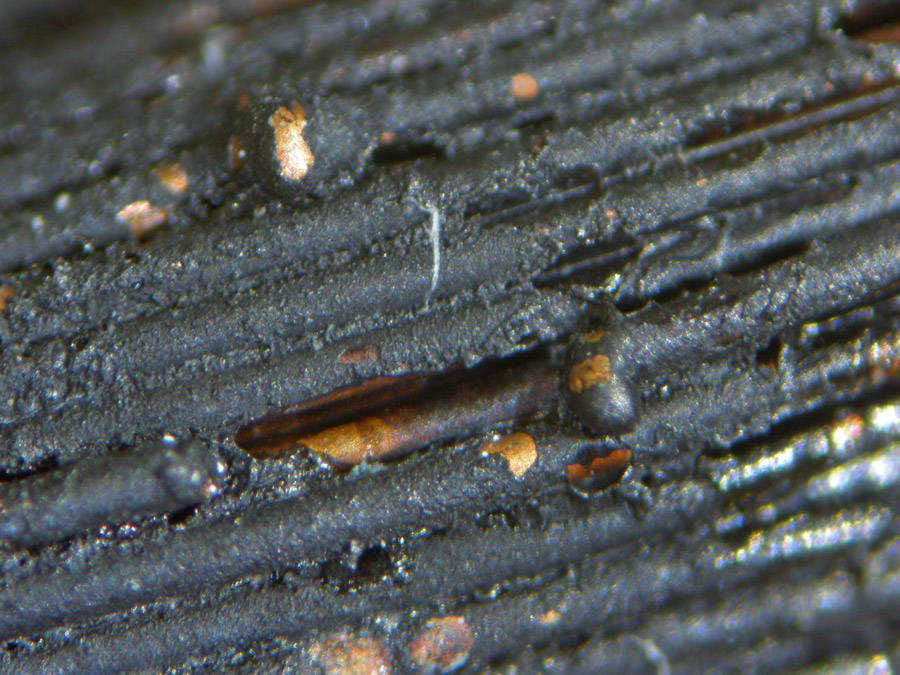

Microscope View of Two Copper Beads and Cut Wires.

SMC Fan Tag

Microscope View of the Two Copper Beads.

SMC Fan Tag

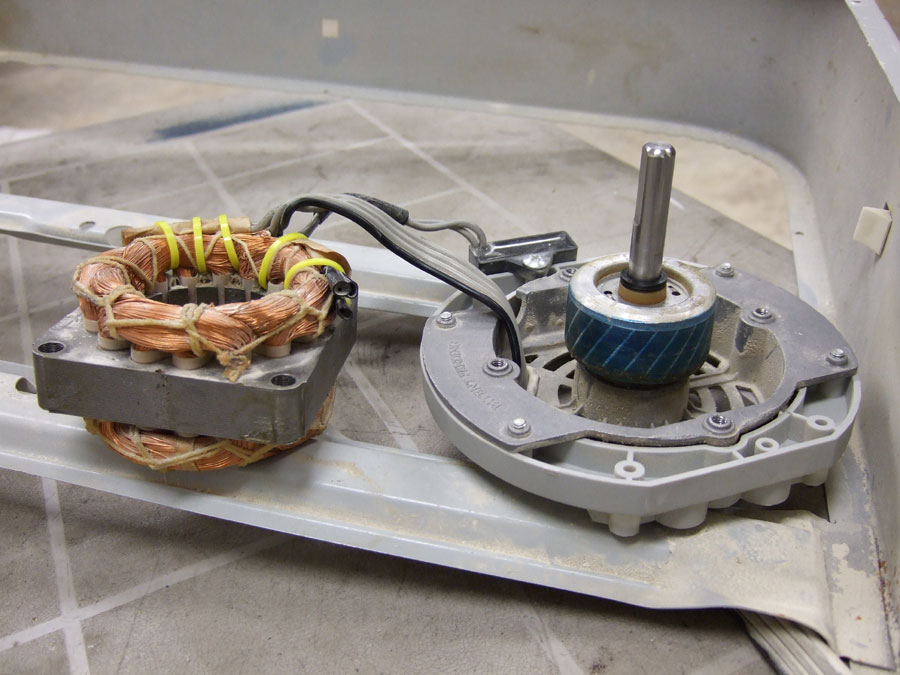

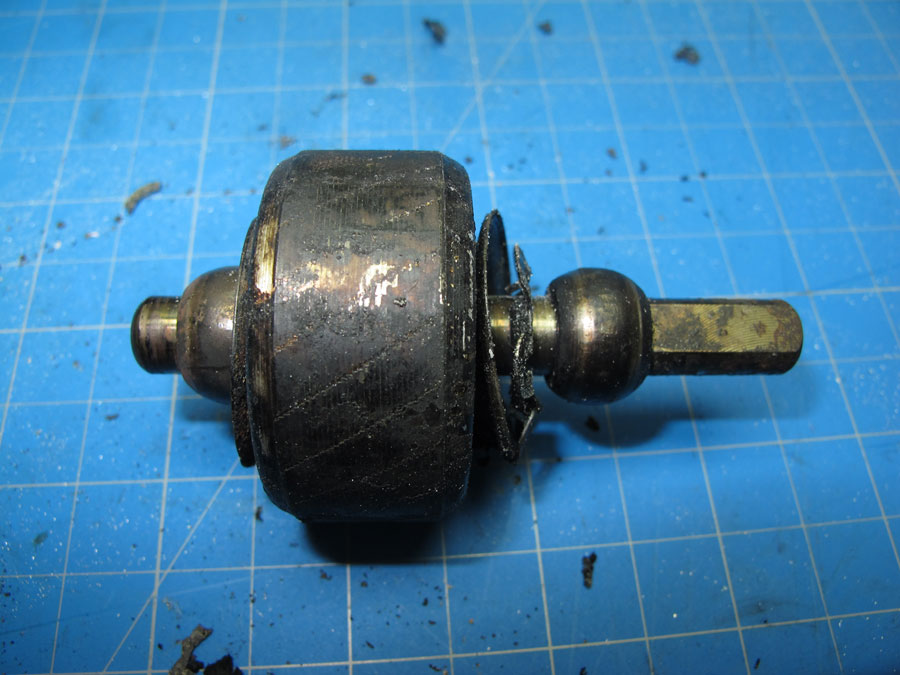

Rotor and Bearings.

SMC Fan Tag

The Front Bearing exhibited Rotational Scaring.
