Smoke Alarm Kidde Model 0915 Teardown

The Kidde Model 0915 was replaced by Kidde Model i9050 .

For Maximum Resolution, Click on the Body of the Picture.

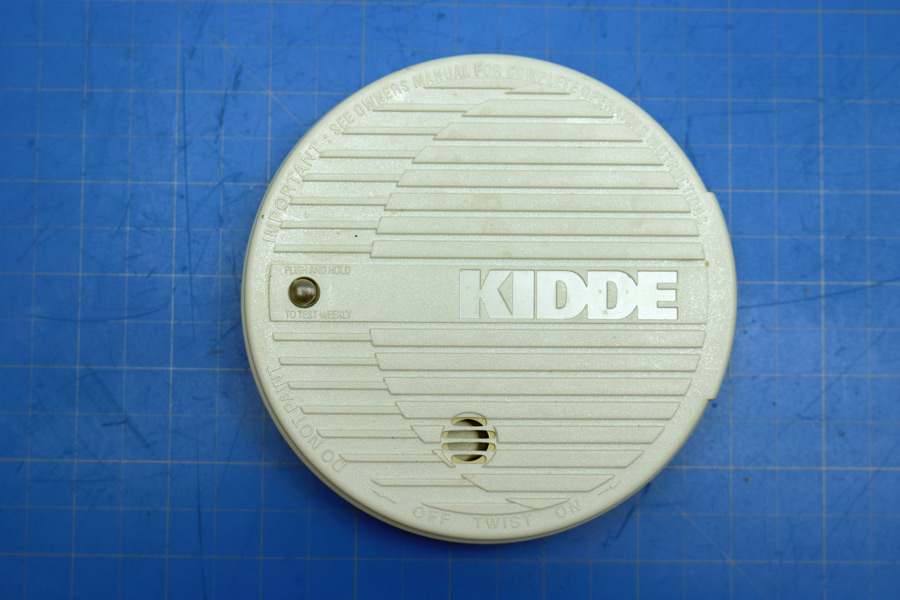

Front of Kidde Smoke Alarm Model 0915
Front of Kidde Model 0915 Smoke Alarm.

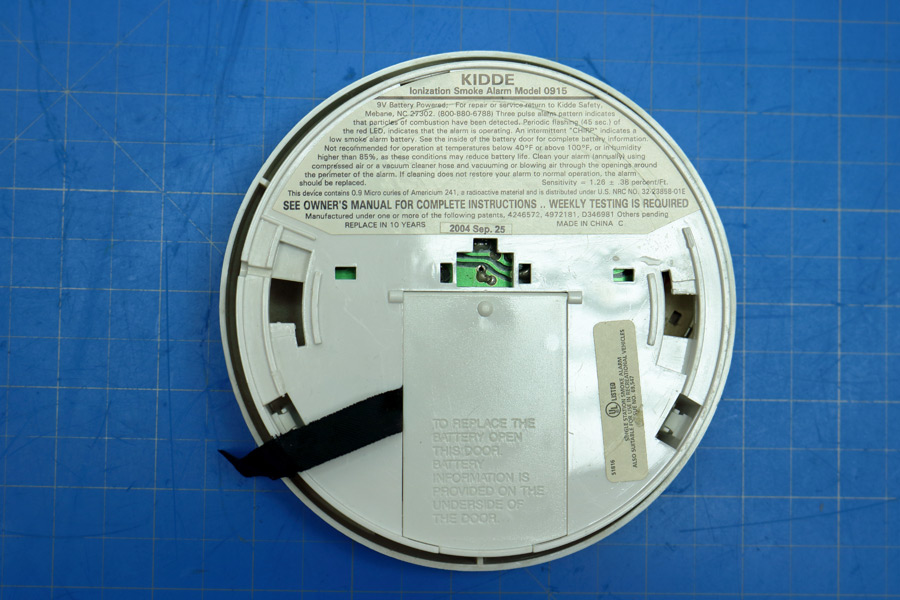

Back Kidde Model 0915 Smoke Alarm
Back of Kidde Smoke Alarm Model 0915 .

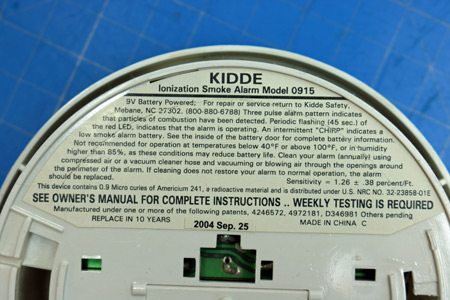

Writing on Back Kidde Model 0915 Smoke Alarm
Text on Back of Kidde Smoke Alarm Model 0915 .
Inside Kidde Model 0915 Smoke Alarm
Inside Kidde Smoke Alarm Model 0915.

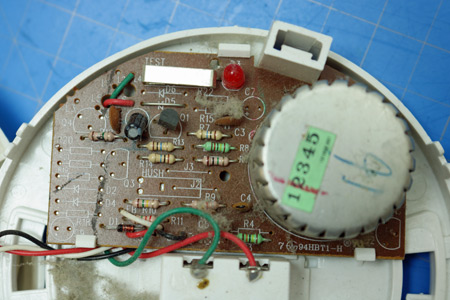

Component Side of PC Board in Kidde Model 0915 Smoke Alarm
Component Side of PC Board in Kidde Model 0915 Smoke Alarm.

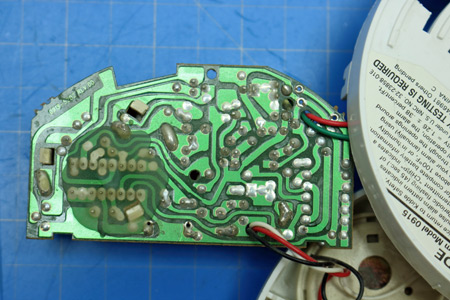

Back of PC Board in Kidde Model 0915 Smoke Alarm
Back of PC Board in Kidde Model 0915 Smoke Alarm.

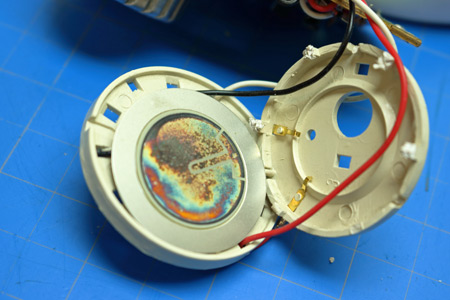

Horn in Kidde Model 0915 Smoke Alarm
Horn in Kidde Model 0915 Smoke Alarm.

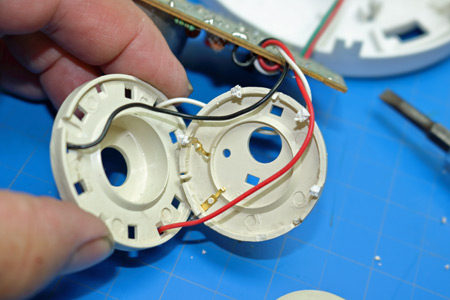

Plastic for Horns in Kidde Model 0915 Smoke Alarm
Plastic for Horns in Kidde Model 0915 Smoke Alarm.
