Distribution Transformers

For Maximum Resolution, Click on the Body of the Picture.

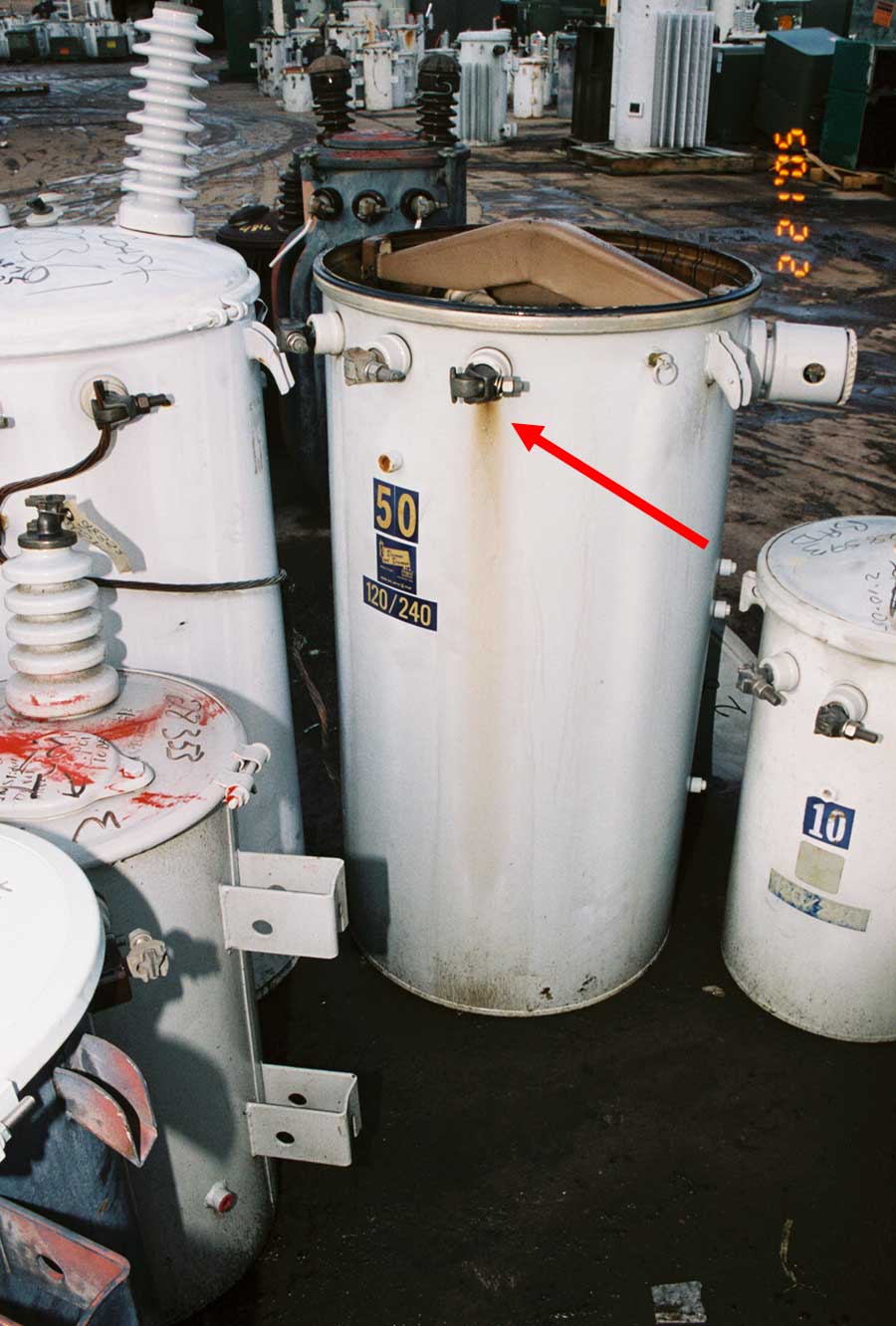

Discoloration of Bushing and Case (F05-08).

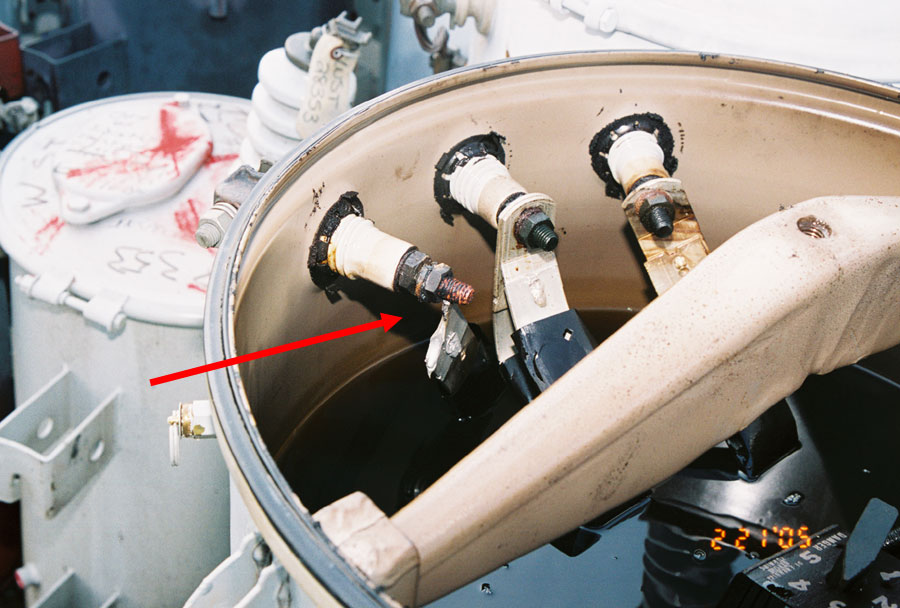

Internal Connection of Bushing Severed by Arcing (F05-08).

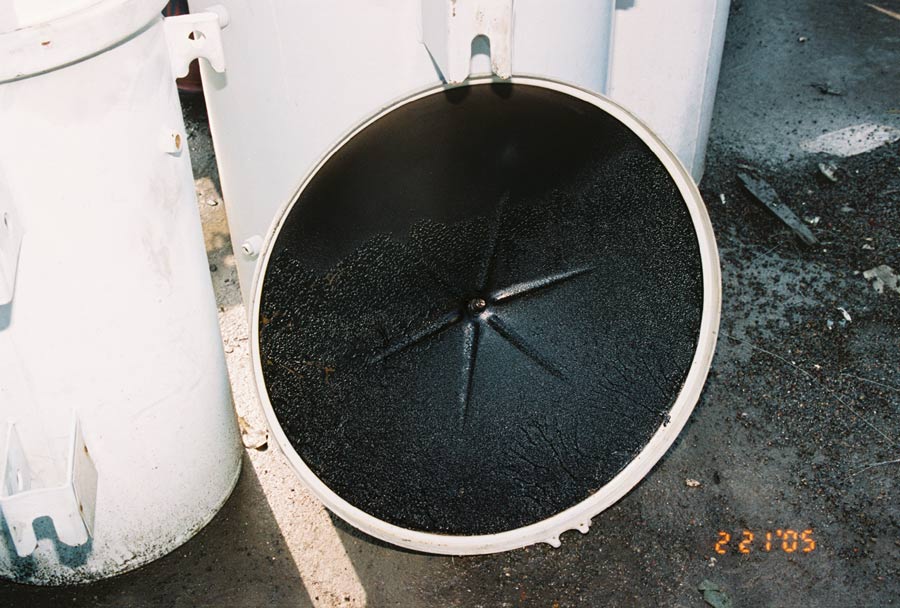

Transformer Lid with Baked on Oil (F05-08).

What's Inside the Gray Cans:

The following picutures were taken at Bowman & Bowman in Greenwood, MS.

For Maximum Resolution, Click on the Body of the Picture.

Three Shell Type Transformer Windings (L05-04).

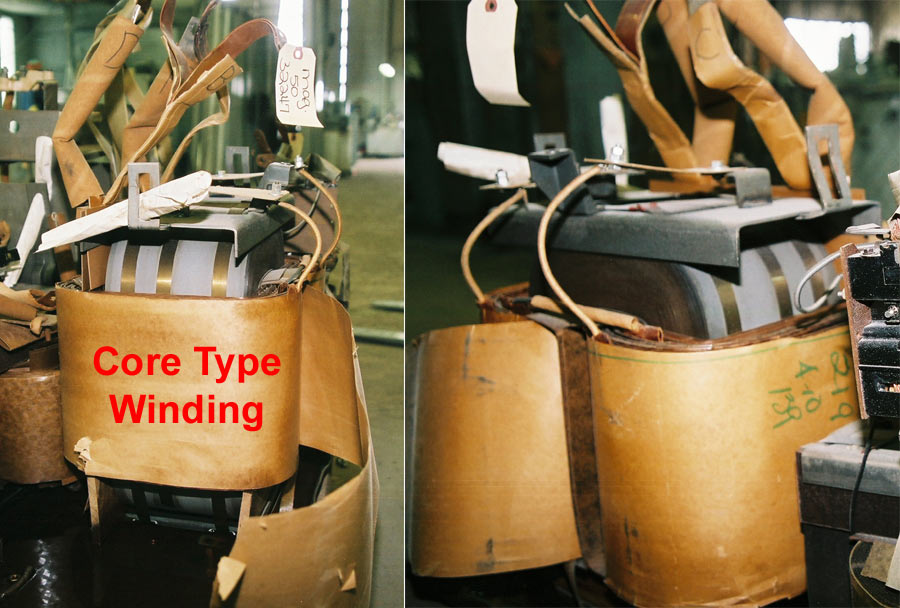

50 KVA Transformer with Core Type Winding (L05-04).

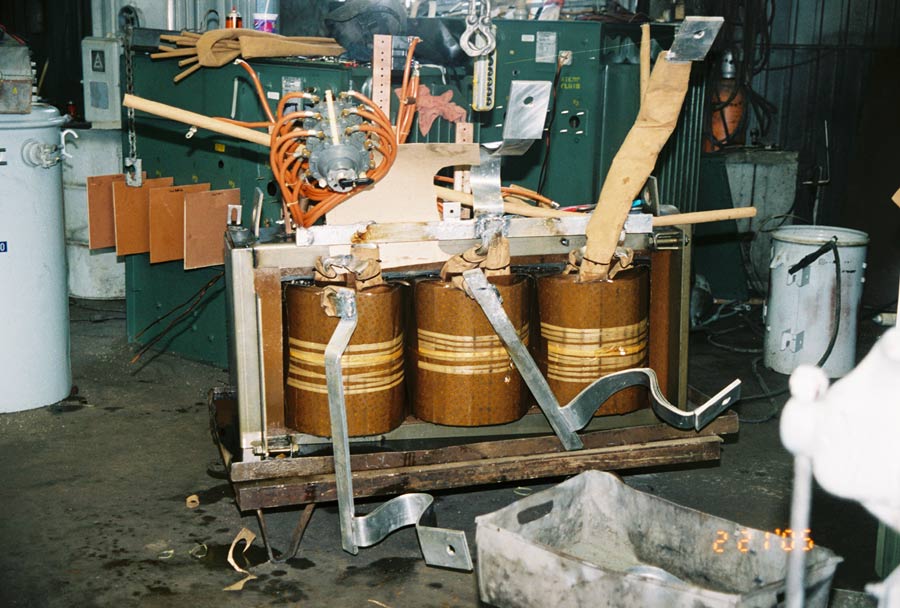

Three-Phase Transformer Windings (F05-08).

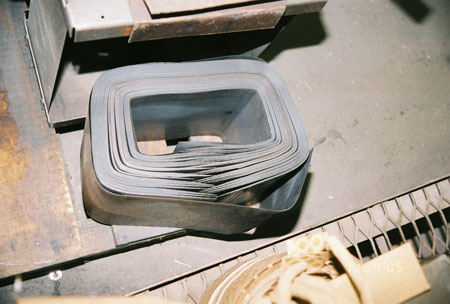

Laminated Iron Transformer Core (L05-04).

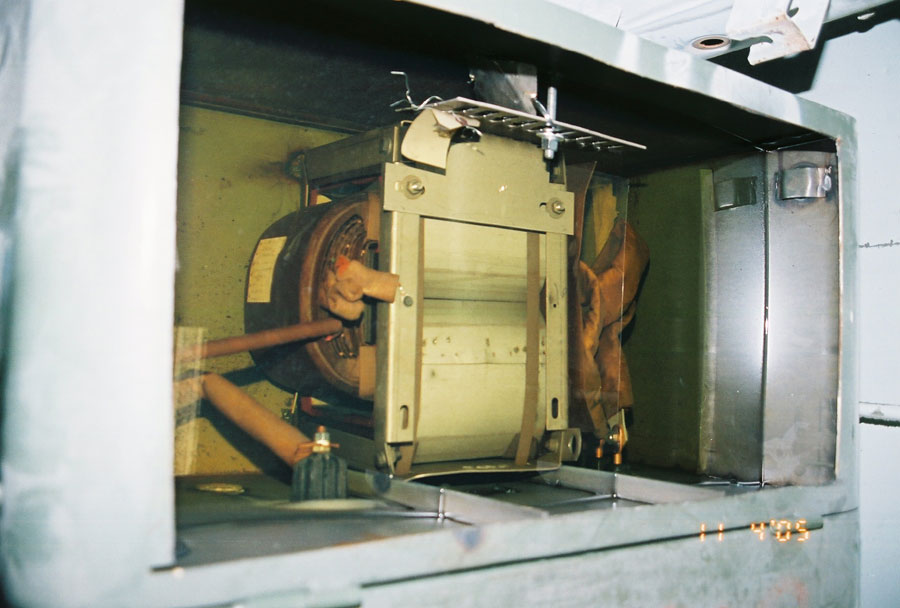

Oil Filled Pad Mounted Transformer (L05-04).

For Maximum Resolution, Click on the Body of the Picture.

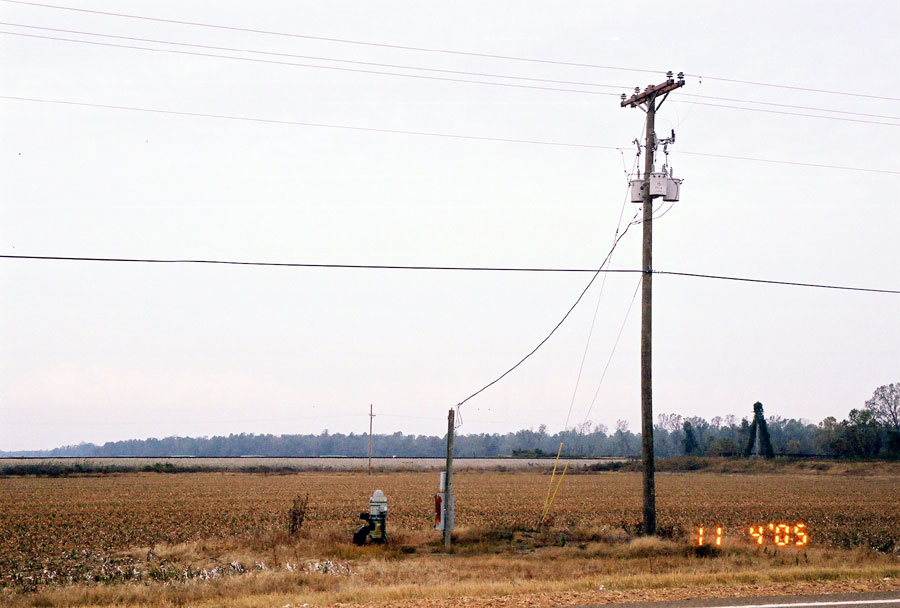

Three-Phase Water Well Pump (L05-04).

Three Single Phase Transformers Arranged in a Delta (L05-04).

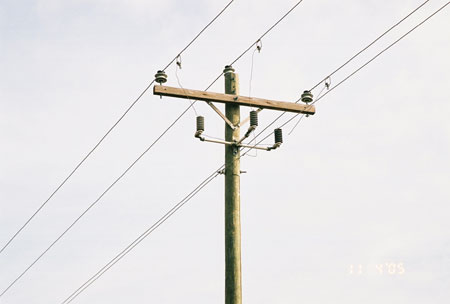

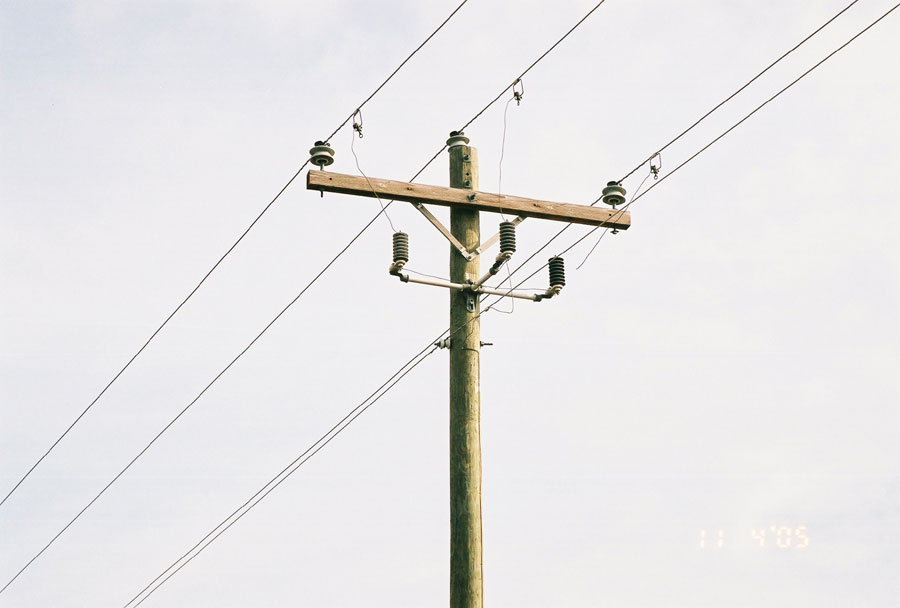

Air Gap Lightning Arrestors along Three-Phase Distribution Line
(L05-04).

National Electrical Safety Code (IEEE) Violation -

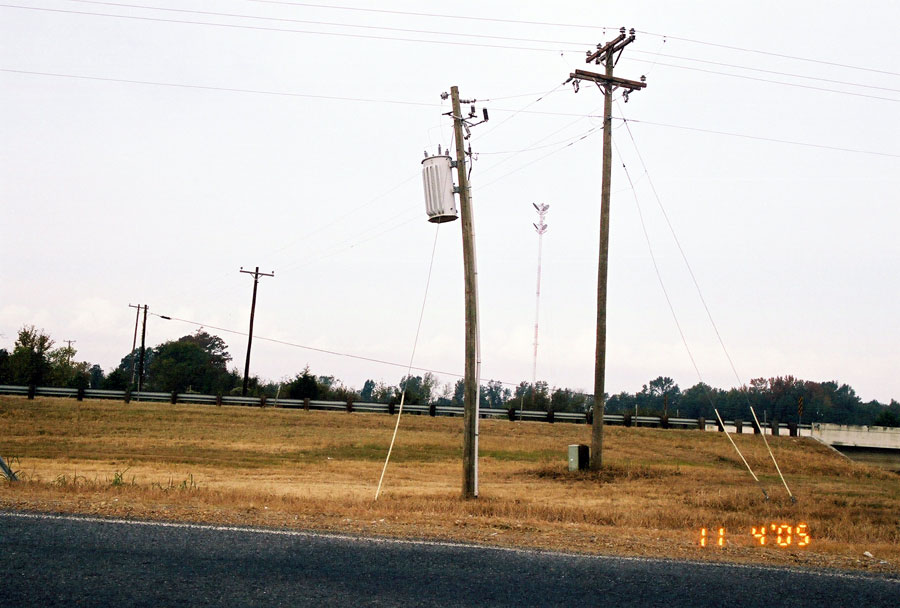

Load too Large for the Size Pole (L05-04).
